Current transformer with a 1:50 turns ratio, designed for general current sensing applications. Features a 10A primary current rating and 500V isolation voltage. Operating frequency range is 20kHz to 200kHz, with primary inductance of 4.5mH and primary DCR of 199mR. This through-hole component utilizes PC pin termination and is housed in a SIP package.
Frequency200kHz
PackageSIP
Current Rating10A
MountingThrough Hole
Quick Jump:
Technical Specifications
Murata 56050C technical specifications.
General
Package/Case
SIP
Contact Plating
Tin
Current Rating
10A
DC Resistance (DCR)
199mR
Depth
20.19mm
Height
20.19mm
Inductance
4.5mH
Input Current
10A
Inside Diameter
5mm
Isolation Voltage
500V
Lead/Base Style
PC Pin
Length
16.79mm
Max Frequency
200kHz
Min Frequency
20kHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Mount
Through Hole
Operating Frequency
20 to 200 kHz
Packaging
Box
Primary Current
10A
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
5600
Termination
PC Pin
Turns Ratio
1:50
Weight
0.013lb
Width
8.89mm
Compliance
RoHS
Compliant
Datasheet
Murata 56050C Datasheet
Download the complete datasheet for Murata 56050C to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

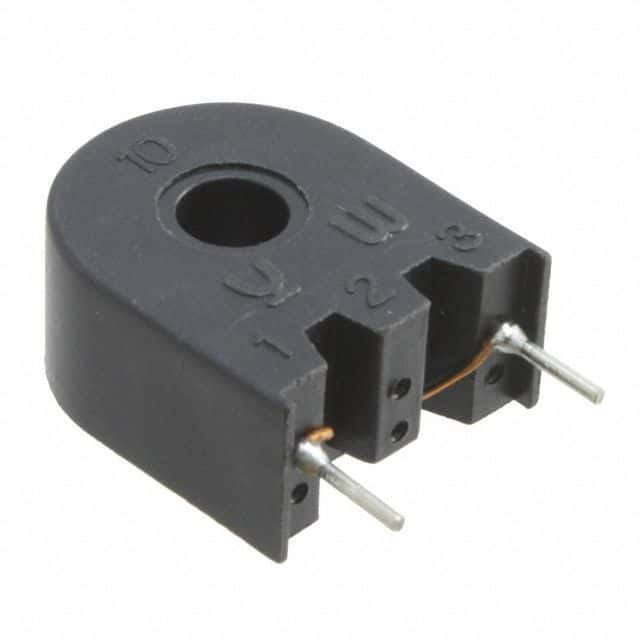

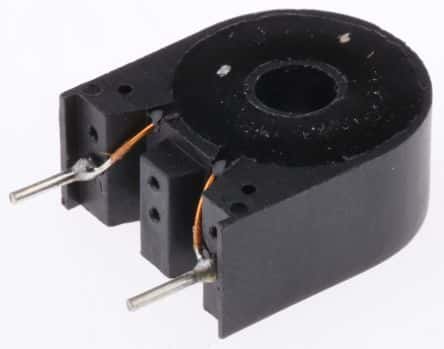

Product Images
