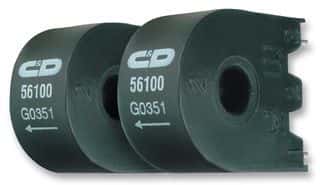

Current Transformer with a 1:100 turns ratio, designed for general applications. Features a 10A primary current rating and 500V isolation voltage. Offers a primary inductance of 18mH and operates within a frequency range of 20 to 200 kHz. Primary DC resistance is 1.4 Ohms. This through-hole component utilizes PC pin termination and is housed in a SIP package.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Murata 56T100C datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | SIP |
| Contact Plating | Tin |
| Current Rating | 10A |
| DC Resistance (DCR) | 1.4R |
| Depth | 20.19mm |
| Height | 20.19mm |
| Inductance | 18mH |
| Input Current | 10A |
| Inside Diameter | 5mm |
| Isolation Voltage | 500V |
| Lead/Base Style | PC Pin |
| Length | 16.79mm |
| Max Frequency | 200kHz |
| Min Frequency | 20kHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Operating Frequency | 20 to 200 kHz |
| Packaging | Box |
| Primary Current | 10A |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | 5600 |
| Termination | PC Pin |
| Turns Ratio | 1:100 |
| Weight | 0.013lb |
| Width | 8.89mm |
| RoHS | Compliant |
