MURATA

78253/55C

Datasheet

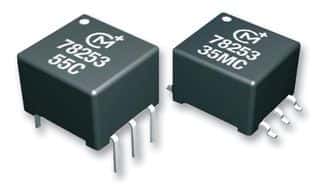

1:1.36 Transformer, 1.5kV Isolation, 200mA, 830uH, PC Pin, Through Hole

Murata

78253/55C

Name: 78253/55C Murata
Brand: Murata
SKU: 78253/55C

1:1.36 Transformer, 1.5kV Isolation, 200mA, 830uH, PC Pin, Through Hole

General purpose transformer featuring a 1:1.36 turns ratio, 1.5kV isolation voltage, and 200mA current rating. This through-hole component offers 830µH primary inductance and a compact 9 x 9.52 x 6.35mm DIP package with PC pin termination. Operating across a -40°C to 85°C temperature range, it boasts UL94 V-0 flammability and Tin contact plating.

PackageDIP

Current Rating200mA

MountingThrough Hole

Inductance830uH

Quick Jump:

Technical Specifications

Murata 78253/55C technical specifications.

General

Package/Case	DIP
Contact Plating	Tin
Current Rating	200mA
DC Resistance (DCR)	1.5R
Depth	9.52mm
Flammability Rating	UL94 V-0
Height	6.35mm
Inductance	830uH
Isolation Voltage	1.5kV
Lead Free	Lead Free
Lead/Base Style	PC Pin
Length	9mm
Max Operating Temperature	85°C
Min Operating Temperature	-40°C
Mount	Through Hole
Output Current	200mA
Packaging	Rail/Tube
Primary Inductance	0.83mH
Primary Winding(s)	Single
Reach SVHC Compliant	No
RoHS Compliant	Yes
Secondary Current	200mA
Secondary Winding(s)	Single
Series	78253
Termination	Through Hole
Turns Ratio	1:1.36
Weight	0.04oz
Width	9mm
