Surface mount transformer featuring a 1:1.31 turns ratio, 1.5kV isolation voltage, and a 200mA current rating. This component offers 830µH primary inductance and a DC resistance of 1.5Ω. Designed for surface mounting with gull wing leads, it measures 9mm x 12.7mm x 6.35mm and operates within a -40°C to 85°C temperature range. RoHS compliant and lead-free.
Current Rating200mA
MountingSurface Mount
Inductance830uH
Quick Jump:
Technical Specifications
Murata 78253/55MC technical specifications.
General
| Current Rating | 200mA |
| DC Resistance (DCR) | 1.5R |
| Depth | 12.7mm |
| Height | 6.35mm |
| Inductance | 830uH |
| Isolation Voltage | 1.5kV |
| Lead Free | Lead Free |
| Lead/Base Style | Gull Wing |
| Length | 9mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Primary Inductance | 0.83mH |
| Primary Winding(s) | Single |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Secondary Current | 200mA |
| Secondary Winding(s) | Single |
| Series | 78253 |
| Termination | Solder |
| Turns Ratio | 1:1.31 |
| Weight | 0.04oz |
| Width | 9mm |
Compliance
| RoHS | Compliant |
Datasheet
Murata 78253/55MC Datasheet
Download the complete datasheet for Murata 78253/55MC to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

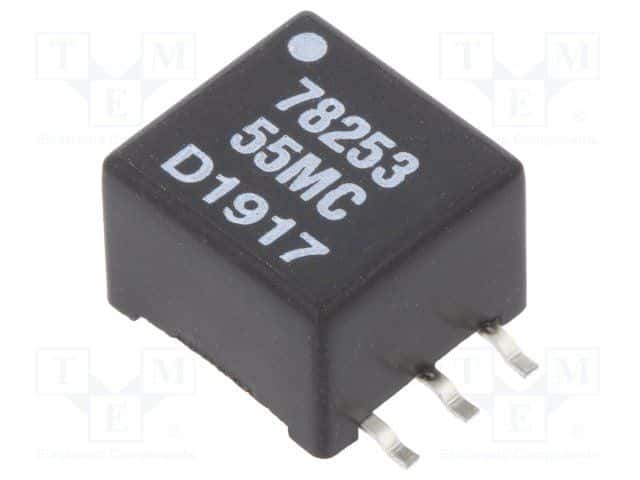

Product Images
