78253/55MVC

Datasheet

1:1.33 Transformer, 4kV Isolation, 240uH, 200mA, Through Hole

Murata

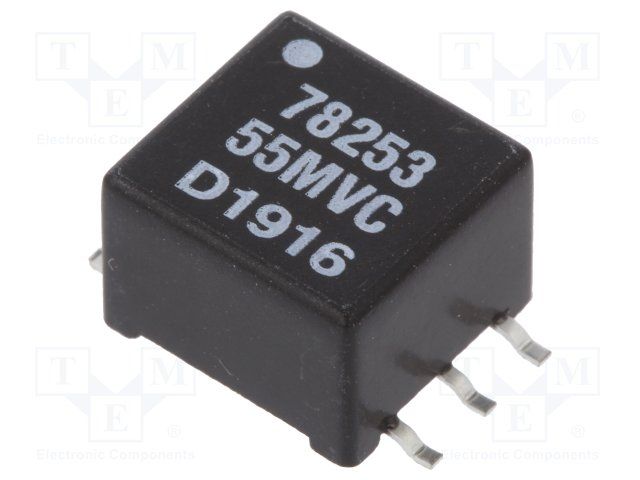

78253/55MVC

Name: 78253/55MVC Murata
Brand: Murata
SKU: 78253/55MVC

1:1.33 Transformer, 4kV Isolation, 240uH, 200mA, Through Hole

High-isolation transformer with a 1:1.31 turns ratio, featuring 4kV isolation voltage and 200mA current rating. This general-purpose transformer offers 240uH primary inductance and 600mR DC resistance, designed for through-hole mounting with PC pin termination. Operating across a -40°C to 85°C temperature range, its compact dimensions include a 9mm length, 9mm width, and 6.35mm height.

Current Rating200mA

MountingSurface Mount

Inductance240uH

Quick Jump:

Technical Specifications

Murata 78253/55MVC technical specifications.

General

Current Rating	200mA
DC Resistance (DCR)	600mR
Depth	12.7mm
Height	6.35mm
Inductance	240uH
Isolation Voltage	4kV
Lead Free	Lead Free
Lead/Base Style	Gull Wing
Length	9mm
Max Operating Temperature	85°C
Min Operating Temperature	-40°C
Mount	Surface Mount
Nominal Input Voltage	5V
Package Quantity	50
Packaging	Rail/Tube
Primary Inductance	240uH
Primary Winding(s)	Single
Radiation Hardening	No
Reach SVHC Compliant	No
Secondary Current	200mA
Secondary Winding(s)	Single
Series	78253
Termination	Solder
Turns Ratio	1:1.31
Weight	0.04oz
Width	9mm
