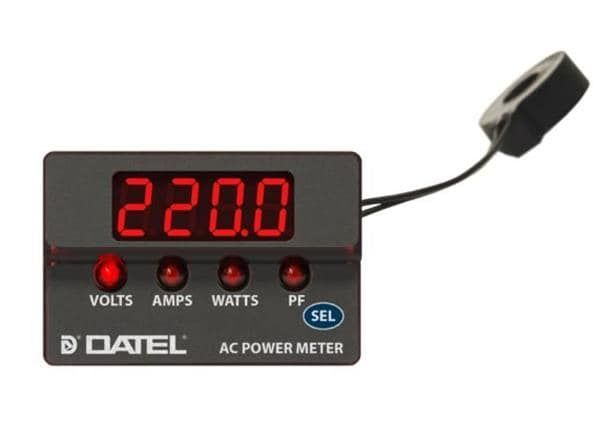

The ACM20-2-AC1-R-C is a 1-phase digital display with a maximum operating temperature of 60°C and a minimum operating temperature of 0°C. It has a maximum supply voltage of 264V AC and a minimum supply voltage of 85V AC. The display is designed for panel mounting and has a weight of 0.095lb. The ACM20-2-AC1-R-C is a bulk-packaged product that is not compliant with Reach SVHC regulations.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Murata ACM20-2-AC1-R-C datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Depth | 23.11mm |
| Display Type | Digital |
| Height | 36.3mm |
| Input Current | 10A |
| Lead Free | Contains Lead |
| Length | 27.9mm |
| Max Operating Temperature | 60°C |
| Min Operating Temperature | 0°C |
| Max Supply Voltage (AC) | 264V |
| Min Supply Voltage (AC) | 85V |
| Mount | Panel |
| Number Of Characters Per Row | 4 |
| Number of Phases | 1 |
| Operating Supply Current | 110mA |
| Packaging | Bulk |
| Reach SVHC Compliant | No |
| Series | ACM20 |
| Termination | Screw |
| Weight | 0.095lb |
| Width | 53.3mm |
| RoHS | Compliant |
