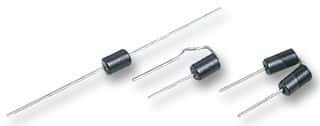

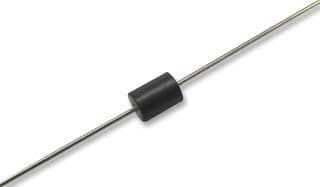

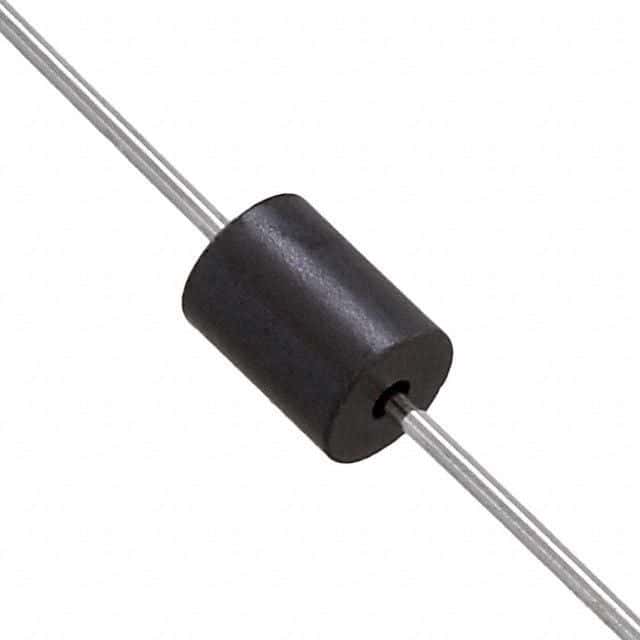

Axial ferrite bead designed for EMI suppression. Features a 7A current rating and 0.02 Ohm DC resistance. Operates within a -40°C to 85°C temperature range. Through-hole mounting with axial leads and copper/tin contact plating. Packaged in bulk for high-volume applications.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Murata BL01RN1A1D2B datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Murata BL01RN1A1D2B technical specifications.
| Package/Case | Axial |
| Contact Plating | Copper, Tin |
| Core Material | Ferrite |
| Current Rating | 7A |
| DC Current | 7A |
| Depth | 3.6mm |
| Diameter | 3.6mm |
| Height | 5mm |
| Lead Free | Lead Free |
| Lead Length | 20mm |
| Lead/Base Style | Axial |
| Length | 5mm |
| Material | Ferrite |
| Max Current Rating | 7A |
| Max DC Current | 7A |
| Max Operating Temperature | 85°C |
| Military Standard | Not |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Number of Lines | 1 |
| Package Quantity | 500 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Resistance | 50R |
| RoHS Compliant | Yes |
| Series | EMIFIL®, BL01RN |
| Shielding | Unshielded |
| Termination | Axial |
| RoHS | Compliant |
