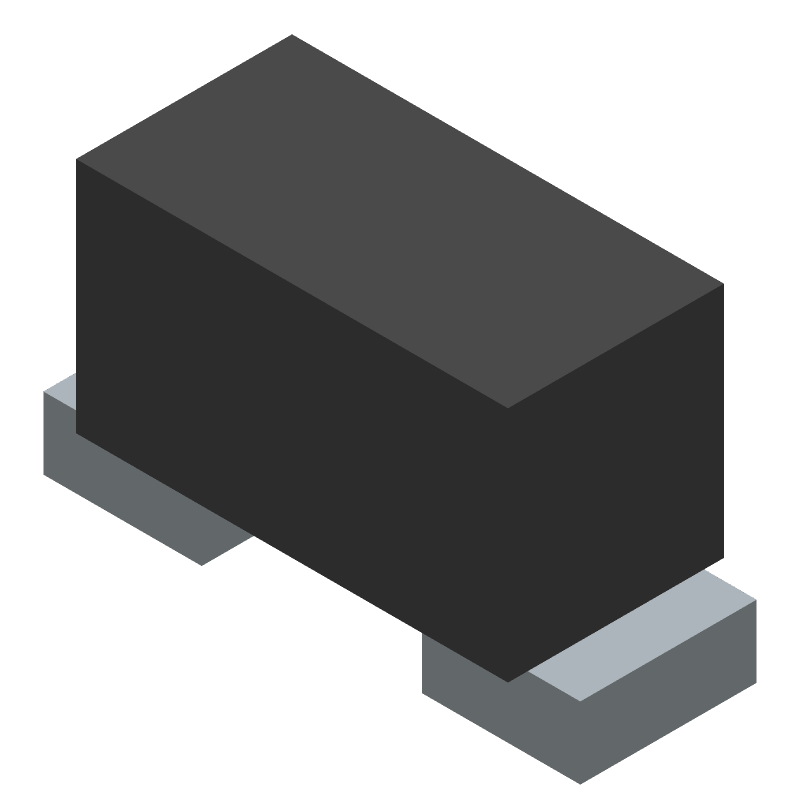

Ferrite chip for data line EMI/RFI filtering. Features 1 function, 1 line, and 1 circuit. Rated for 150mA maximum DC current and RMS current. Offers 600 Ohm impedance at 100MHz test frequency and 1.7 Ohm DC resistance. Housed in an EIA STD 0201 (0603 metric) package with SMD/SMT termination. Operating temperature range from -55°C to 125°C.
Package0201
Current Rating150mA
Quick Jump:
Technical Specifications
Murata BLM03HD601SN1D technical specifications.
General
| Case Code (Imperial) | 0201 |
| Case Code (Metric) | 0603 |
| Package/Case | 0201 |
| Current Rating | 150mA |
| DC Resistance (DCR) | 1.7R |
| Height | 0.3mm |
| Impedance | 600R |
| Length | 0.6mm |
| Material | Steel |
| Max Current Rating | 150mA |
| Max DC Current | 150mA |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Number of Circuits | 1 |
| Number of Lines | 1 |
| Package Quantity | 15000 |
| Packaging | Tape and Reel |
| RMS Current (Irms) | 150mA |
| RoHS Compliant | Yes |
| Series | EMIFIL®, BLM03H |
| Series Resistance | 1.7R |
| Termination | SMD/SMT |
| Test Frequency | 100MHz |
| Tolerance | 25% |
| Width | 0.3mm |
Compliance
| RoHS | Compliant |
