Multi-layer ferrite bead designed for signal line noise suppression. Features 600 Ohm impedance at 100MHz with a 25% tolerance. Rated for 300mA DC current and offers a maximum DC resistance of 600mOhm. Housed in a compact 0402 (1005 metric) SMD/SMT package, operating from -55°C to 125°C.
Frequency100MHz
Package0402
Current Rating300mA
Quick Jump:
Technical Specifications
Murata BLM15AG601SN1D technical specifications.
General
Case Code (Imperial)
0402
Case Code (Metric)
1005
Package/Case
0402
Core Material
Ferrite
Current Rating
300mA
DC Current
300mA
DC Resistance (DCR)
520mR
DC Resistance-Max
600mR
Depth
0.55mm
Frequency
100MHz
Height
0.5mm
Impedance
600R
Lead Free
Lead Free
Length
1mm
Material
Steel, Ferrite
Max Current Rating
300mA
Max DC Current
300mA
Max Operating Temperature
125°C
Military Standard
Not
Min Operating Temperature
-55°C
Number of Circuits
1
Number of Lines
1
Package Quantity
1
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
RMS Current (Irms)
300mA
RoHS Compliant
Yes
Series
BLM15AG_SN
Series Resistance
520mR
Shielding
Unshielded
Termination
SMD/SMT
Test Frequency
100MHz
Tolerance
25%
Width
0.5mm
Compliance
RoHS
Compliant
Datasheet
Murata BLM15AG601SN1D Datasheet
Download the complete datasheet for Murata BLM15AG601SN1D to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

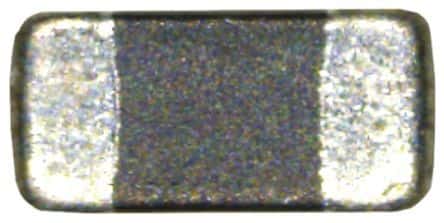

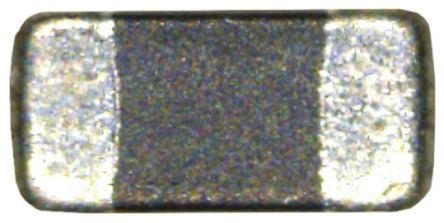

Product Images
