Ferrite chip EMI/RFI filter for data lines, featuring a 220 Ohm impedance at 100MHz. This single-circuit component offers a 600mA current rating and a low DC resistance of 180mR. Encased in a compact 0402 (1005 metric) SMD/SMT package, it operates across a wide temperature range from -55°C to 125°C. Constructed with ferrite core material, it is lead-free and RoHS compliant.
Package0402
Current Rating600mA
Quick Jump:
Technical Specifications
Murata BLM15AX221SN1D technical specifications.
General
Case Code (Imperial)
0402
Case Code (Metric)
1005
Package/Case
0402
Core Material
Ferrite
Current Rating
600mA
DC Resistance (DCR)
180mR
DC Resistance-Max
180MR
Depth
0.5mm
Height
0.5mm
Impedance
220R
Lead Free
Lead Free
Length
1mm
Material
Steel, Ferrite
Max Current Rating
600mA
Max DC Current
600mA
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Number of Circuits
1
Number of Lines
1
Package Quantity
1
Packaging
Tape and Reel
Reach SVHC Compliant
No
RMS Current (Irms)
600mA
RoHS Compliant
Yes
Series
BLM15AX_SN
Series Resistance
180mR
Termination
SMD/SMT
Test Frequency
100MHz
Tolerance
25%
Width
0.5mm
Compliance
RoHS
Compliant
Datasheet
Murata BLM15AX221SN1D Datasheet
Download the complete datasheet for Murata BLM15AX221SN1D to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

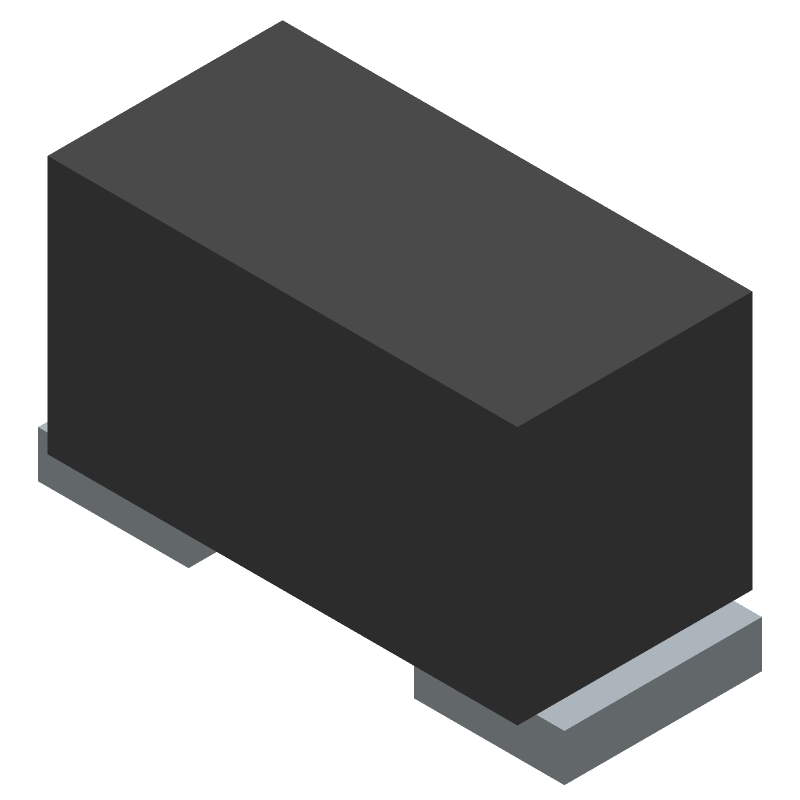

Product Images
