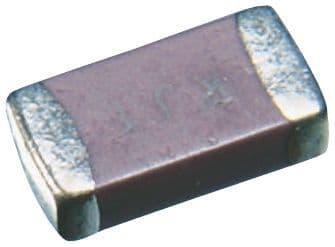

Ferrite chip EMI/RFI filter for data lines, featuring a 0402 (1005 metric) EIA standard package size. This single-circuit, single-line component offers 47 Ohm impedance at 100MHz, with a maximum current rating of 300mA. Constructed with a ferrite core and steel material, it operates within a temperature range of -55°C to 125°C and has a DC resistance of 350mR. The component is RoHS compliant and utilizes SMD/SMT termination.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Murata BLM15BB470SN1D datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Case Code (Imperial) | 0402 |
| Case Code (Metric) | 1005 |
| Package/Case | 0402 |
| Core Material | Ferrite |
| Current Rating | 300mA |
| DC Resistance (DCR) | 350mR |
| Depth | 0.55mm |
| Height | 0.5mm |
| Impedance | 47R |
| Lead Free | Lead Free |
| Length | 1mm |
| Material | Ferrite, Steel |
| Max Current Rating | 300mA |
| Max DC Current | 300mA |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Number of Circuits | 1 |
| Number of Lines | 1 |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| Resistance | 350mR |
| RMS Current (Irms) | 300mA |
| RoHS Compliant | Yes |
| Series | BLM15B |
| Series Resistance | 350mR |
| Shielding | Unshielded |
| Termination | SMD/SMT |
| Test Frequency | 100MHz |
| Tolerance | 25% |
| Width | 0.5mm |
| RoHS | Compliant |
