Multi-layer ferrite bead with 1kΩ impedance at 100MHz and 200mA current rating. Features a 0402 (1005 metric) case size, ferrite core material, and 900mΩ maximum DC resistance. Operates across a -55°C to 125°C temperature range and is supplied on tape and reel. This unshielded component offers a single circuit and single line configuration.
Frequency100MHz
Package0402
Resistance900mR
Current Rating200mA
Quick Jump:
Technical Specifications
Murata BLM15BD102SN1D technical specifications.
General
Case Code (Imperial)
0402
Case Code (Metric)
1005
Package/Case
0402
Core Material
Ferrite
Current Rating
200mA
DC Resistance (DCR)
900mR
DC Resistance-Max
900mR
Depth
0.5mm
Frequency
100MHz
Height
0.5mm
Impedance
1kR
Lead Free
Lead Free
Length
1mm
Material
Ferrite, Steel
Max Current Rating
200mA
Max DC Current
200mA
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Number of Circuits
1
Number of Lines
1
Package Quantity
1
Packaging
Tape and Reel
Reach SVHC Compliant
No
Resistance
900mR
RMS Current (Irms)
200mA
RoHS Compliant
Yes
Series
BLM15B
Series Resistance
900mR
Shielding
Unshielded
Termination
Flat
Test Frequency
100MHz
Tolerance
25%
Width
0.5mm
Compliance
RoHS
Compliant
Datasheet
Murata BLM15BD102SN1D Datasheet
Download the complete datasheet for Murata BLM15BD102SN1D to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

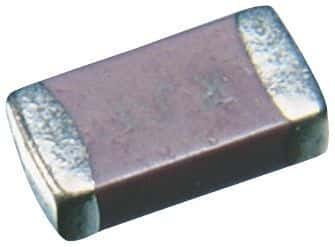

Product Images
