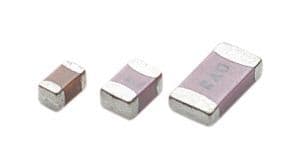

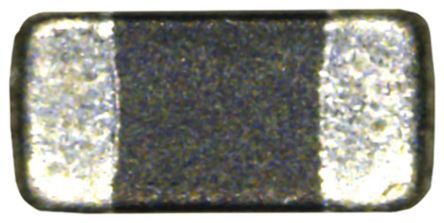

Multi-layer ferrite bead for noise suppression. Features 220 Ohm impedance at 100MHz with a 25% tolerance. Rated for 700mA DC current and 700mA RMS current, with a low DC resistance of 280mR. Housed in a compact 0402 (1005 metric) SMD/SMT package. Operates across a wide temperature range from -55°C to 125°C.
Frequency100MHz
Package0402
Current Rating700mA
Quick Jump:
Technical Specifications
Murata BLM15EG221SN1D technical specifications.
General
Case Code (Imperial)
0402
Case Code (Metric)
1005
Package/Case
0402
Core Material
Ferrite
Current Rating
700mA
DC Current
700mA
DC Resistance (DCR)
280mR
DC Resistance-Max
280MR
Depth
0.55mm
Frequency
100MHz
Height
0.5mm
Impedance
220R
Lead Free
Lead Free
Length
1mm
Material
Steel, Ferrite
Max Current Rating
700mA
Max DC Current
700mA
Max Operating Temperature
125°C
Military Standard
Not
Min Operating Temperature
-55°C
Number of Circuits
1
Number of Lines
1
Package Quantity
1
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
RMS Current (Irms)
700mA
RoHS Compliant
Yes
Series
BLM15EG
Series Resistance
280mR
Termination
SMD/SMT
Test Frequency
100MHz
Tolerance
25%
Weight
2.3E-05oz
Width
0.5mm
Compliance
RoHS
Compliant
Datasheet
Murata BLM15EG221SN1D Datasheet
Download the complete datasheet for Murata BLM15EG221SN1D to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
