Multi-layer ferrite bead designed for EMI suppression. Features 600 Ohm impedance at 100MHz with a 25% tolerance. Rated for 300mA DC current and a maximum operating temperature of 125°C. Housed in a compact 0402 (1005) SMD package with a low DC resistance of 700mR. RoHS compliant and lead-free.
Frequency100MHz
Package0402
Current Rating300mA
Quick Jump:
Technical Specifications
Murata BLM15HG601SN1D technical specifications.
General
Case Code (Imperial)
0402
Case Code (Metric)
1005
Package/Case
0402
Core Material
Ferrite
Current Rating
300mA
DC Current
300mA
DC Resistance (DCR)
700mR
DC Resistance-Max
700mR
Depth
0.5mm
Frequency
100MHz
Height
0.5mm
Impedance
600R
Lead Free
Lead Free
Length
1mm
Material
Ferrite, Steel
Max Current Rating
300mA
Max DC Current
300mA
Max Operating Temperature
125°C
Military Standard
Not
Min Operating Temperature
-55°C
Number of Circuits
1
Number of Lines
1
Package Quantity
1
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
RMS Current (Irms)
300mA
RoHS Compliant
Yes
Series
BLM15H
Series Resistance
700mR
Shielding
Unshielded
Termination
SMD/SMT
Test Frequency
100MHz
Tolerance
25%
Width
0.5mm
Compliance
RoHS
Compliant
Datasheet
Murata BLM15HG601SN1D Datasheet
Download the complete datasheet for Murata BLM15HG601SN1D to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

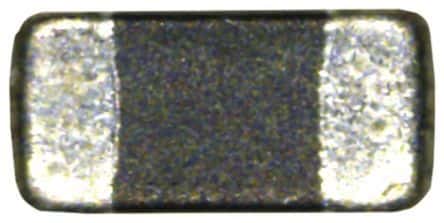

Product Images
