Surface mount ferrite chip for data line EMI/RFI filtering. Features 120 Ohm impedance at 100MHz, a 500mA maximum DC current rating, and 800mA RMS current. Housed in an EIA 0603 (1608 metric) package with a ferrite core. Operates from -55°C to 125°C and is RoHS and Lead Free compliant.
Package0603
Current Rating200mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Murata BLM18AG121SH1D technical specifications.
General
| Case Code (Imperial) | 0603 |
| Case Code (Metric) | 1608 |
| Package/Case | 0603 |
| Core Material | Ferrite |
| Current Rating | 200mA |
| DC Resistance-Max | 200MR |
| Depth | 0.95mm |
| Height | 0.8mm |
| Impedance | 120R |
| Lead Free | Lead Free |
| Length | 1.6mm |
| Material | Steel |
| Max Current Rating | 800mA |
| Max DC Current | 500mA |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Number of Circuits | 1 |
| Number of Lines | 1 |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Ratings | AEC-Q200 |
| Reach SVHC Compliant | No |
| RMS Current (Irms) | 800mA |
| RoHS Compliant | Yes |
| Series | BLM18A |
| Series Resistance | 180mR |
| Shielding | Unshielded |
| Termination | SMD/SMT |
| Test Frequency | 100MHz |
| Tolerance | 25% |
| Width | 0.8mm |
Compliance
| RoHS | Compliant |
Datasheet
Murata BLM18AG121SH1D Datasheet
Download the complete datasheet for Murata BLM18AG121SH1D to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

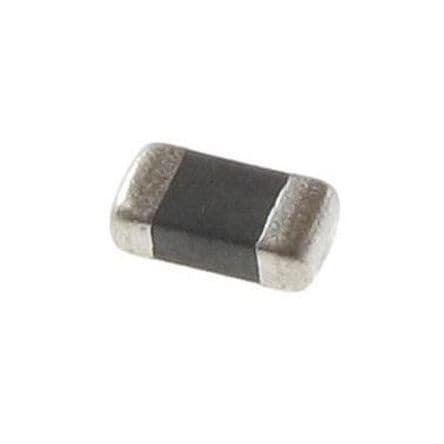

Product Images
