Multi-layer ferrite bead for EMI suppression. Features 120 Ohm impedance at 100MHz with a 25% tolerance. Rated for 800mA RMS current and 500mA DC current, with a maximum DC resistance of 180mR. Housed in a compact 0603 (1608 metric) SMD/SMT package, operating from -55°C to 125°C.
Frequency100MHz
Package0603
Current Rating500mA
Quick Jump:
Technical Specifications
Murata BLM18AG121SN1D technical specifications.
General
Case Code (Imperial)
0603
Case Code (Metric)
1608
Package/Case
0603
Core Material
Ferrite
Current Rating
500mA
DC Current
500mA
DC Resistance (DCR)
180mR
DC Resistance-Max
180mR
Depth
0.8mm
Frequency
100MHz
Height
0.8mm
Impedance
120R
Lead Free
Lead Free
Length
1.6mm
Material
Steel, Ferrite
Max Current Rating
800mA
Max DC Current
500mA
Max Operating Temperature
125°C
Military Standard
Not
Min Operating Temperature
-55°C
Number of Circuits
1
Number of Lines
1
Package Quantity
1
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
RMS Current (Irms)
800mA
RoHS Compliant
Yes
Series
BLM18A
Series Resistance
180mR
Shielding
Unshielded
Termination
SMD/SMT
Test Frequency
100MHz
Tolerance
25%
Width
0.8mm
Compliance
RoHS
Compliant
Datasheet
Murata BLM18AG121SN1D Datasheet
Download the complete datasheet for Murata BLM18AG121SN1D to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

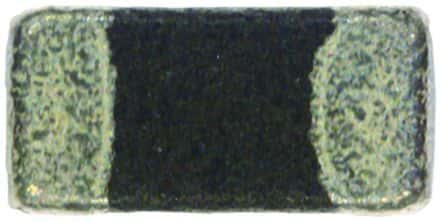

Product Images
