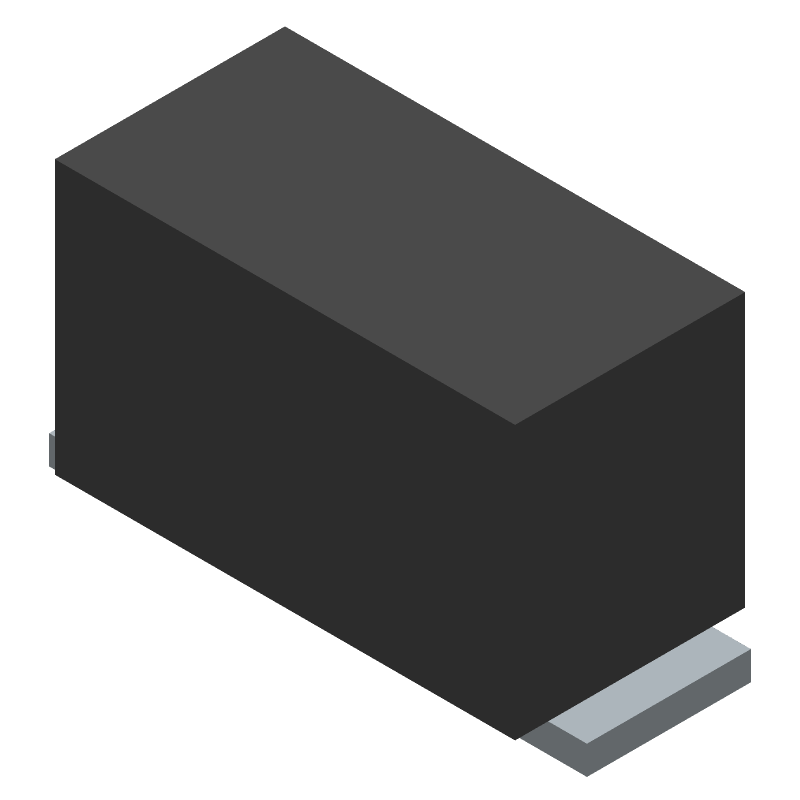

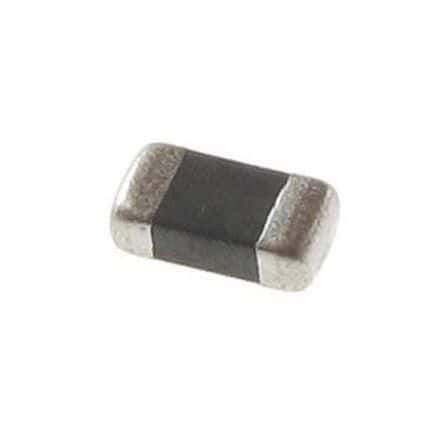

Ferrite chip for EMI/RFI filtering on data lines. Features a 470 Ohm impedance at 100MHz, 500mA max DC current, and 550mA max current rating. Housed in a 0603 (1608 metric) EIA standard package with tin, matte contact plating. Operates from -55°C to 125°C and is RoHS compliant. Surface mountable with a single circuit and single line configuration.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Murata BLM18AG471SH1D datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Case Code (Imperial) | 0603 |
| Case Code (Metric) | 1608 |
| Package/Case | 0603 |
| Contact Plating | Tin, Matte |
| Core Material | Ferrite |
| Height | 0.037inch |
| Impedance | 470R |
| Lead Free | Lead Free |
| Length | 1.6mm |
| Max Current Rating | 550mA |
| Max DC Current | 500mA |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Number of Circuits | 1 |
| Number of Lines | 1 |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Ratings | AEC-Q200 |
| Reach SVHC Compliant | No |
| Resistance | 350mR |
| RoHS Compliant | Yes |
| Series | EMIFIL®, BLM18A |
| Shielding | Unshielded |
| Termination | SMD/SMT |
| Test Frequency | 100MHz |
| Tolerance | 25% |
| Weight | 7.1E-05oz |
| Width | 0.031inch |
| RoHS | Compliant |
