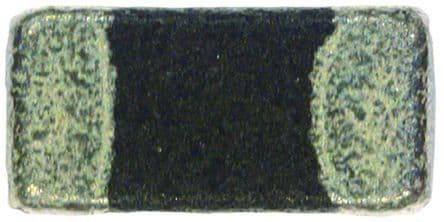

Multi-layer ferrite bead designed for signal line noise suppression. Features 220 Ohm impedance at 100MHz with a 25% tolerance. Rated for 2A maximum DC current and 2A RMS current, with a low DC resistance of 50mR. Housed in a compact 0603 (1608 metric) SMD/SMT package, operating from -55°C to 125°C. Supplied on tape and reel for automated assembly.
Frequency100MHz
Package0603
Resistance50mR
Current Rating2A
Quick Jump:
Technical Specifications
Murata BLM18EG221SN1D technical specifications.
General
Case Code (Imperial)
0603
Case Code (Metric)
1608
Package/Case
0603
Core Material
Ferrite
Current Rating
2A
DC Current
2A
DC Resistance (DCR)
50mR
DC Resistance-Max
50mR
Depth
0.8mm
Frequency
100MHz
Height
0.8mm
Impedance
220R
Length
1.6mm
Material
Steel, Ferrite
Max Current Rating
2A
Max DC Current
2A
Max Operating Temperature
125°C
Military Standard
Not
Min Operating Temperature
-55°C
Number of Circuits
1
Number of Lines
1
Package Quantity
1
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
Resistance
50mR
RMS Current (Irms)
2A
RoHS Compliant
Yes
Series
BLM18E
Series Resistance
50mR
Termination
SMD/SMT
Test Frequency
100MHz
Tolerance
25%
Width
0.8mm
Compliance
RoHS
Compliant
