Multi-layer ferrite bead for signal line filtering. Features 1kΩ impedance at 100MHz with a 25% tolerance. Rated for 600mA RMS current and 200mA DC current. Housed in a compact 0805 (2012 metric) SMD package with a low DC resistance of 270mΩ. Operating temperature range from -55°C to 125°C.
Frequency100MHz
Package0805
Current Rating500mA
Quick Jump:
Technical Specifications
Murata BLM21AG102SN1D technical specifications.
General
Case Code (Imperial)
0805
Case Code (Metric)
2012
Package/Case
0805
Core Material
Ferrite
Current Rating
500mA
DC Current
200mA
DC Resistance (DCR)
280mR
DC Resistance-Max
280mR
Depth
1.25mm
Frequency
100MHz
Height
0.85mm
Impedance
1kR
Lead Free
Lead Free
Length
2mm
Material
Steel, Ferrite
Max Current Rating
500mA
Max DC Current
200mA
Max Operating Temperature
125°C
Military Standard
Not
Min Operating Temperature
-55°C
Number of Circuits
1
Number of Lines
1
Package Quantity
1
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
RMS Current (Irms)
600mA
RoHS Compliant
Yes
Series
BLM21A
Series Resistance
270mR
Shielding
Unshielded
Termination
SMD/SMT
Test Frequency
100MHz
Tolerance
25%
Weight
0.000194oz
Width
1.25mm
Compliance
RoHS
Compliant
Datasheet
Murata BLM21AG102SN1D Datasheet
Download the complete datasheet for Murata BLM21AG102SN1D to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

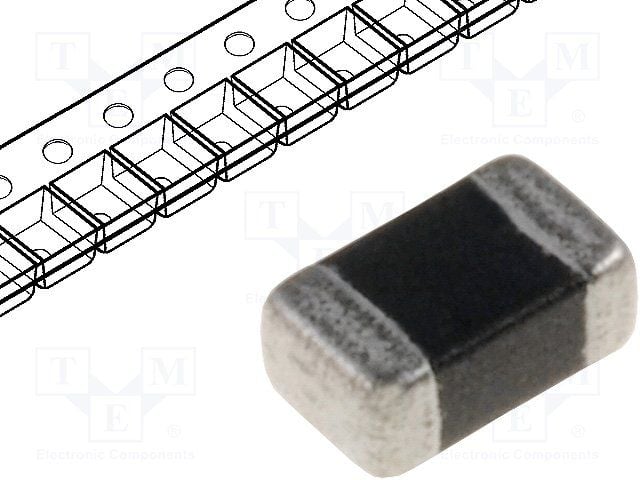

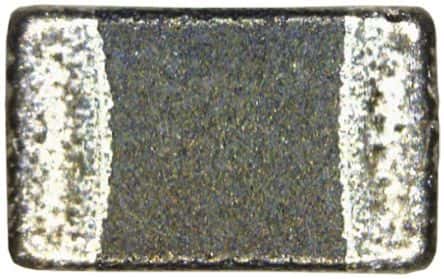

Product Images
