Multi-layer ferrite bead for EMI suppression. Features 600 Ohm impedance at 100MHz with a 25% tolerance. Rated for 700mA RMS current and 200mA DC current, with a low 0.21 Ohm DC resistance. Housed in a compact 0805 (2012 metric) SMD package with copper conductors and ferrite core. Operates across a wide temperature range of -55°C to +125°C.
Frequency100MHz
Package0805
Current Rating600mA
Quick Jump:
Technical Specifications
Murata BLM21AG601SN1D technical specifications.
General
Case Code (Imperial)
0805
Case Code (Metric)
2012
Package/Case
0805
Conductor Material
Copper
Core Material
Ferrite
Current Rating
600mA
DC Current
200mA
DC Resistance (DCR)
210mR
DC Resistance-Max
210mR
Depth
1.25mm
ESR (Equivalent Series Resistance)
600R
Frequency
100MHz
Height
0.85mm
Impedance
600R
Lead Free
Lead Free
Length
2mm
Manufacturer Series
BLM21A
Material
Steel, Ferrite
Max Current Rating
600mA
Max DC Current
200mA
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Number of Circuits
1
Number of Functions
1
Number of Lines
1
Package Quantity
1
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
RMS Current (Irms)
700mA
RoHS Compliant
Yes
Series
BLM21A
Series Resistance
200mR
Shielding
Unshielded
Terminal Finish
Tin
Termination
SMD/SMT
Test Frequency
100MHz
Tolerance
25%
Width
1.25mm
Compliance
RoHS
Compliant
Datasheet
Murata BLM21AG601SN1D Datasheet
Download the complete datasheet for Murata BLM21AG601SN1D to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

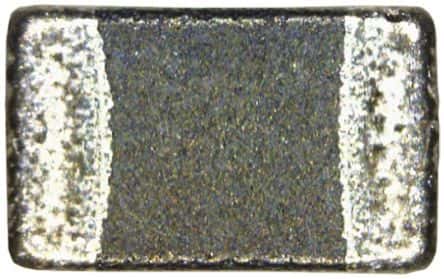

Product Images
