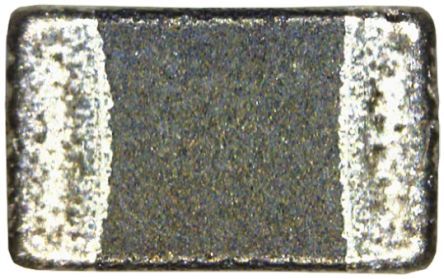

Ferrite chip EMI/RFI filter for data lines, featuring a 220 Ohm impedance at 100MHz. This 1-function component supports a 500mA current rating and operates within a -55°C to 125°C temperature range. Constructed with a ferrite core and steel, it utilizes an EIA 0805 (2012 metric) SMD/SMT package. The device offers a maximum DC resistance of 260mR and is RoHS compliant.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Murata BLM21BB221SN1D datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Case Code (Imperial) | 0805 |
| Case Code (Metric) | 2012 |
| Package/Case | 0805 |
| Core Material | Ferrite |
| Current Rating | 500mA |
| DC Resistance (DCR) | 260mR |
| DC Resistance-Max | 260mR |
| Depth | 1.25mm |
| Height | 0.85mm |
| Impedance | 220R |
| Lead Free | Lead Free |
| Length | 2mm |
| Material | Steel, Ferrite |
| Max Current Rating | 500mA |
| Max DC Current | 200mA |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Number of Circuits | 1 |
| Number of Lines | 1 |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| Resistance | 350mR |
| RMS Current (Irms) | 500mA |
| RoHS Compliant | Yes |
| Series | BLM21B |
| Series Resistance | 260mR |
| Shielding | Unshielded |
| Termination | SMD/SMT |
| Test Frequency | 100MHz |
| Tolerance | 25% |
| Width | 1.25mm |
| RoHS | Compliant |
