Multi-layer ferrite bead for EMI suppression, featuring 120 Ohm impedance at 100MHz with a 25% tolerance. This 0805 (2012 metric) surface-mount component offers a maximum current rating of 3A and a low DC resistance of 30mR. Constructed from steel and ferrite materials, it operates across a wide temperature range of -55°C to 125°C and is supplied on tape and reel.
Package0805
Current Rating3A
Quick Jump:
Technical Specifications
Murata BLM21PG121SN1D technical specifications.
General
Case Code (Imperial)
0805
Case Code (Metric)
2012
Package/Case
0805
Current Rating
3A
DC Resistance (DCR)
30mR
DC Resistance-Max
30mR
Depth
1.25mm
Height
0.85mm
Impedance
120R
Lead Free
Lead Free
Length
2mm
Material
Steel, Ferrite
Max Current Rating
3A
Max DC Current
3A
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Number of Circuits
1
Number of Lines
1
Package Quantity
1
Packaging
Tape and Reel
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
BLM21P
Termination
SMD/SMT
Test Frequency
100MHz
Tolerance
25%
Width
1.25mm
Compliance
RoHS
Compliant
Datasheet
Murata BLM21PG121SN1D Datasheet
Download the complete datasheet for Murata BLM21PG121SN1D to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

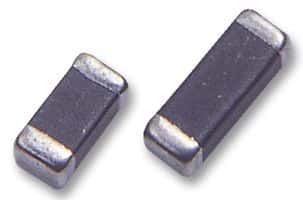

Product Images
