Multi-layer ferrite bead for EMI suppression. Features 30 Ohm impedance at 100MHz, 4A RMS current rating, and 3A DC current capability. Offers low 0.014 Ohm DC resistance (DCR) and operates across a wide temperature range of -55°C to 125°C. Packaged in a compact 0805 (2012 metric) SMD/SMT case, this unshielded component is supplied on tape and reel.
Frequency100MHz
Package0805
Resistance15mR
Current Rating4A
Quick Jump:
Technical Specifications
Murata BLM21PG300SN1D technical specifications.
General
| Case Code (Imperial) | 0805 |
| Case Code (Metric) | 2012 |
| Package/Case | 0805 |
| Core Material | Ferrite |
| Current Rating | 4A |
| DC Current | 3A |
| DC Resistance (DCR) | 14mR |
| DC Resistance-Max | 14mR |
| Depth | 1.25mm |
| Frequency | 100MHz |
| Height | 0.85mm |
| Impedance | 30R |
| Lead Free | Lead Free |
| Length | 2mm |
| Material | Steel, Ferrite |
| Max Current Rating | 4A |
| Max DC Current | 3A |
| Max Operating Temperature | 125°C |
| Military Standard | Not |
| Min Operating Temperature | -55°C |
| Number of Circuits | 1 |
| Number of Lines | 1 |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Resistance | 15mR |
| RMS Current (Irms) | 4A |
| RoHS Compliant | Yes |
| Series | BLM21P |
| Series Resistance | 14mR |
| Shielding | Unshielded |
| Termination | SMD/SMT |
| Test Frequency | 100MHz |
| Tolerance | 25% |
| Width | 1.25mm |
Compliance
| RoHS | Compliant |
Datasheet
Murata BLM21PG300SN1D Datasheet
Download the complete datasheet for Murata BLM21PG300SN1D to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

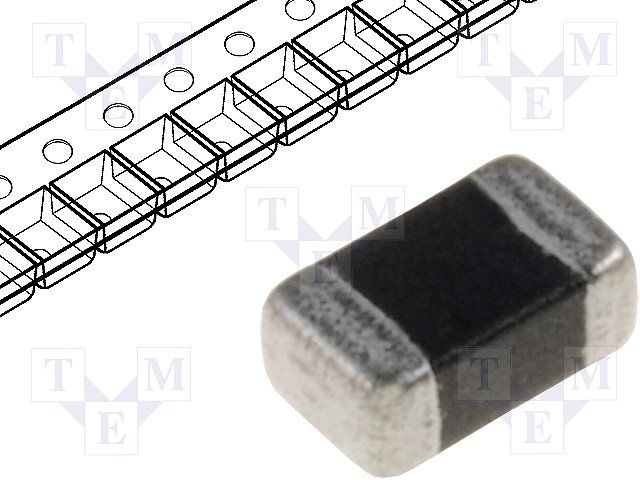

Product Images
