Surface mount ferrite chip for data line EMI/RFI filtering. Features 1 function, 3.5A max DC current, and 60 Ohm impedance at 100MHz. Encased in an 0805 (2012 metric) package with tin, matte contact plating and a ferrite core. Operates from -55°C to 125°C and is RoHS compliant.
Package0805
MountingSurface Mount
Quick Jump:
Technical Specifications
Murata BLM21PG600SH1D technical specifications.
General
| Case Code (Imperial) | 0805 |
| Case Code (Metric) | 2012 |
| Package/Case | 0805 |
| Contact Plating | Tin, Matte |
| Core Material | Ferrite |
| Height | 0.041inch |
| Impedance | 60R |
| Lead Free | Lead Free |
| Length | 2mm |
| Material | Steel |
| Max Current Rating | 3.5A |
| Max DC Current | 3.5A |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Number of Circuits | 1 |
| Number of Lines | 1 |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Ratings | AEC-Q200 |
| Reach SVHC Compliant | No |
| RMS Current (Irms) | 3.5A |
| RoHS Compliant | Yes |
| Series | EMIFIL®, BLM21P |
| Series Resistance | 20mR |
| Shielding | Unshielded |
| Termination | SMD/SMT |
| Test Frequency | 100MHz |
| Tolerance | 25% |
| Weight | 0.000194oz |
| Width | 1.25mm |
Compliance
| RoHS | Compliant |
Datasheet
Murata BLM21PG600SH1D Datasheet
Download the complete datasheet for Murata BLM21PG600SH1D to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

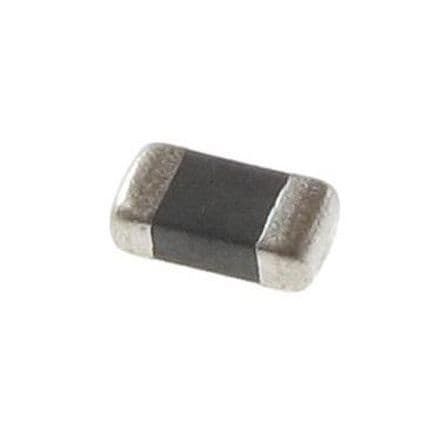

Product Images
