Multi-layer ferrite bead designed for signal line noise suppression. Features 60 Ohm impedance at 100MHz with a 25% tolerance. Rated for 3.5A RMS and 3A DC current, with a low 20mOhm DC resistance. Housed in a compact 0805 (2012 metric) SMD package, operating from -55°C to +125°C. RoHS compliant and lead-free.
Frequency100MHz
Package0805
Current Rating3.5A
Quick Jump:
Technical Specifications
Murata BLM21PG600SN1D technical specifications.
General
Case Code (Imperial)
0805
Case Code (Metric)
2012
Package/Case
0805
Core Material
Ferrite
Current Rating
3.5A
DC Current
3A
DC Resistance (DCR)
20mR
DC Resistance-Max
20mR
Depth
1.25mm
Frequency
100MHz
Height
0.85mm
Impedance
60R
Lead Free
Lead Free
Length
2mm
Material
Steel, Ferrite
Max Current Rating
3.5A
Max DC Current
3A
Max Operating Temperature
125°C
Military Standard
Not
Min Operating Temperature
-55°C
Number of Circuits
1
Number of Lines
1
Package Quantity
1
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
RMS Current (Irms)
3.5A
RoHS Compliant
Yes
Series
BLM21P
Series Resistance
20mR
Shielding
Unshielded
Termination
SMD/SMT
Test Frequency
100MHz
Tolerance
25%
Width
1.25mm
Compliance
RoHS
Compliant
Datasheet
Murata BLM21PG600SN1D Datasheet
Download the complete datasheet for Murata BLM21PG600SN1D to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

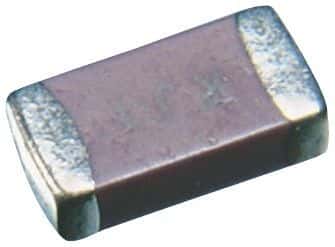

Product Images
