Surface mount ceramic resonator operating at 10 MHz. Features 0.5% frequency tolerance and 0.3% frequency stability. Designed with a ceramic package, it offers a 15pF load capacitance and operates within a -20°C to 80°C temperature range. This component is RoHS compliant and suitable for surface mounting applications.
Frequency10MHz
PackageSMD/SMT
Voltage Rating6V
MountingSurface Mount
Quick Jump:
Technical Specifications
Murata CSTCC10M0G53-R0 technical specifications.
General
| Accuracy | 0.5% |
| Package/Case | SMD/SMT |
| Dielectric Material | Ceramic |
| Frequency | 10MHz |
| Frequency Stability | 0.3% |
| Frequency Tolerance | 0.5% |
| Height | 1.75mm |
| Lead Free | Lead Free |
| Lead Pitch | 2.5mm |
| Length | 6.6mm |
| Load Capacitance | 15pF |
| Max Operating Temperature | 80°C |
| Min Operating Temperature | -20°C |
| Mount | Surface Mount |
| Operating Frequency | 10 MHz |
| Package Quantity | 2000 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Self Resonant Frequency | 10MHz |
| Termination | SMD/SMT |
| Tolerance | 0.5% |
| Voltage Rating | 6V |
| DC Rated Voltage | 6V |
| Width | 2.1mm |
Compliance
| RoHS | Compliant |
Datasheet
Murata CSTCC10M0G53-R0 Datasheet
Download the complete datasheet for Murata CSTCC10M0G53-R0 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

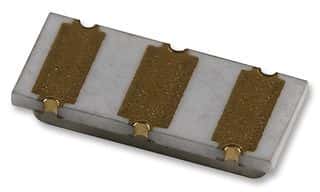

Product Images
