3.58MHz Ceramic Resonator, ±0.5% frequency tolerance, and ±0.3% frequency stability. Features 15pF load capacitance and 50 Ohm impedance. Surface mount device in a 3-pin CSMD package, operating from -20°C to 80°C. Lead-free and RoHS compliant.
Frequency3.58MHz
PackageSMD/SMT
Capacitance15pF
Voltage Rating6V
Quick Jump:
Technical Specifications
Murata CSTCC3M58G53-R0 technical specifications.
General
| Accuracy | 0.5% |
| Capacitance | 15pF |
| Package/Case | SMD/SMT |
| Frequency | 3.58MHz |
| Frequency Stability | 0.3% |
| Frequency Tolerance | 0.5% |
| Height | 0.063inch |
| Impedance | 50R |
| Lead Free | Lead Free |
| Lead Pitch | 2.5mm |
| Length | 0.283inch |
| Load Capacitance | 15pF |
| Max Operating Temperature | 80°C |
| Min Operating Temperature | -20°C |
| Mount | Surface Mount |
| Operating Frequency | 3.58 MHz |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Self Resonant Frequency | 3.58MHz |
| Series | CERALOCK® |
| Termination | SMD/SMT |
| Tolerance | 0.5% |
| Voltage Rating | 6V |
| DC Rated Voltage | 6V |
| Width | 0.118inch |
Compliance
| RoHS | Compliant |
Datasheet
Murata CSTCC3M58G53-R0 Datasheet
Download the complete datasheet for Murata CSTCC3M58G53-R0 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

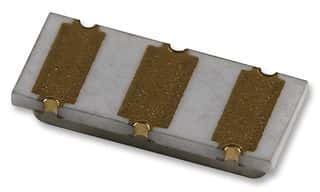

Product Images
