Technical Specifications
Murata CSTCE12M0G52-R0 technical specifications.
General
| Capacitance | 10pF |
| Package/Case | SMD/SMT |
| Frequency | 12MHz |
| Frequency Stability | 0.2% |
| Frequency Tolerance | 0.5% |
| Height | 0.7mm |
| Lead Free | Lead Free |
| Length | 3.2mm |
| Load Capacitance | 10pF |
| Max Operating Temperature | 80°C |
| Min Operating Temperature | -20°C |
| Mount | Surface Mount |
| Operating Frequency | 12 MHz |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Self Resonant Frequency | 12MHz |
| Series | CERALOCK® CSTCE |
| Termination | SMD/SMT |
| Tolerance | 0.5% |
| Width | 1.3mm |
Compliance
| RoHS | Compliant |
Datasheet
Murata CSTCE12M0G52-R0 Datasheet
Download the complete datasheet for Murata CSTCE12M0G52-R0 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

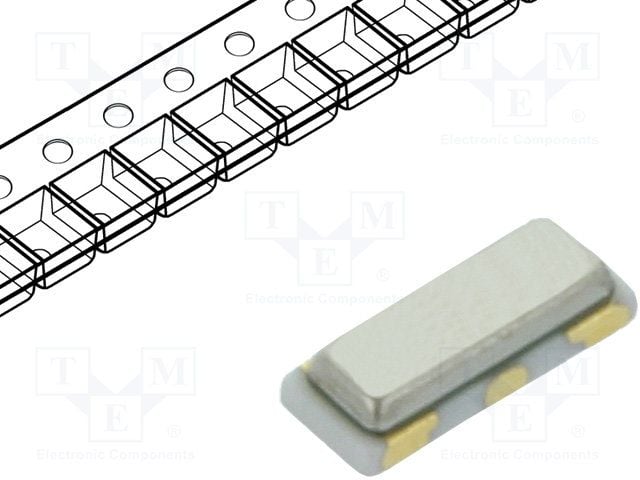

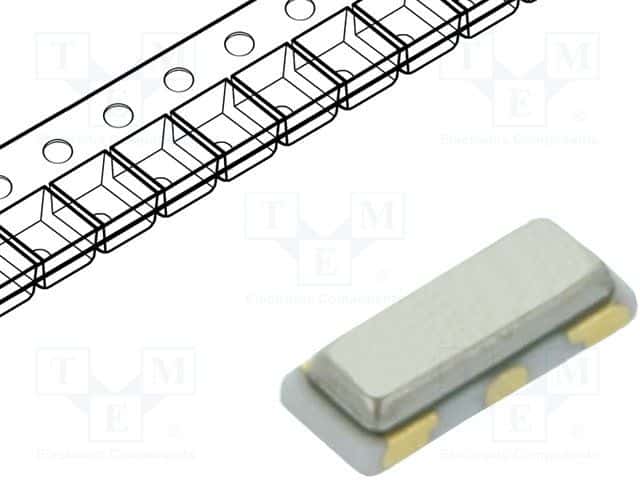

Product Images
