Surface mount ceramic resonator operating at 12 MHz. Features a 0.5% frequency tolerance and 0.2% frequency stability. Encased in a compact SMD/SMT package with gold contact plating, this component offers a load capacitance of 33pF and an impedance of 30 Ohms. Designed for surface mounting, it operates within a temperature range of -20°C to 80°C and is RoHS compliant.
Frequency12MHz
PackageSMD/SMT
Capacitance33pF
MountingSurface Mount
Quick Jump:
Technical Specifications
Murata CSTCE12M0G55-R0 technical specifications.
General
Capacitance
33pF
Package/Case
SMD/SMT
Contact Plating
Gold
Frequency
12MHz
Frequency Stability
0.2%
Frequency Tolerance
0.5%
Height
0.031inch
Impedance
30R
Lead Free
Lead Free
Length
0.126inch
Load Capacitance
33pF
Max Operating Temperature
80°C
Min Operating Temperature
-20°C
Mount
Surface Mount
Operating Frequency
12 MHz
Package Quantity
1
Packaging
Tape and Reel
Reach SVHC Compliant
No
RoHS Compliant
Yes
Self Resonant Frequency
12MHz
Series
CERALOCK®
Termination
SMD/SMT
Tolerance
0.5%
Width
0.051inch
Compliance
RoHS
Compliant
Datasheet
Murata CSTCE12M0G55-R0 Datasheet
Download the complete datasheet for Murata CSTCE12M0G55-R0 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

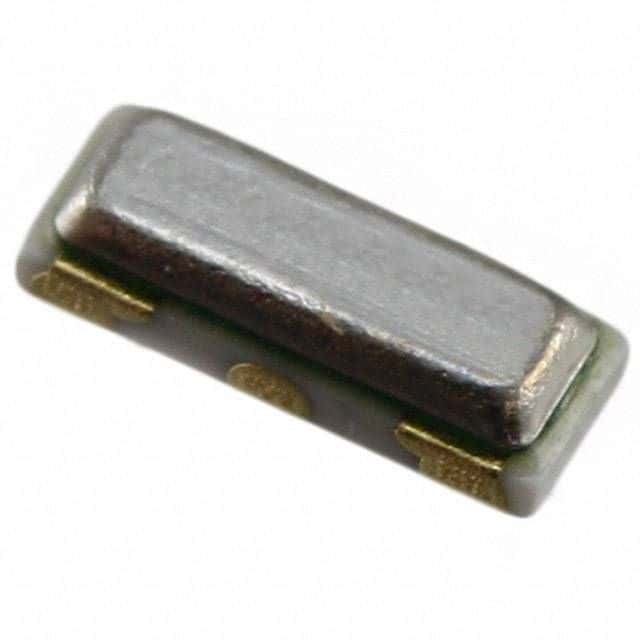

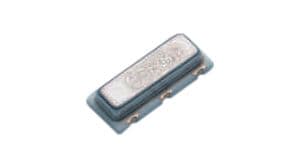

Product Images
