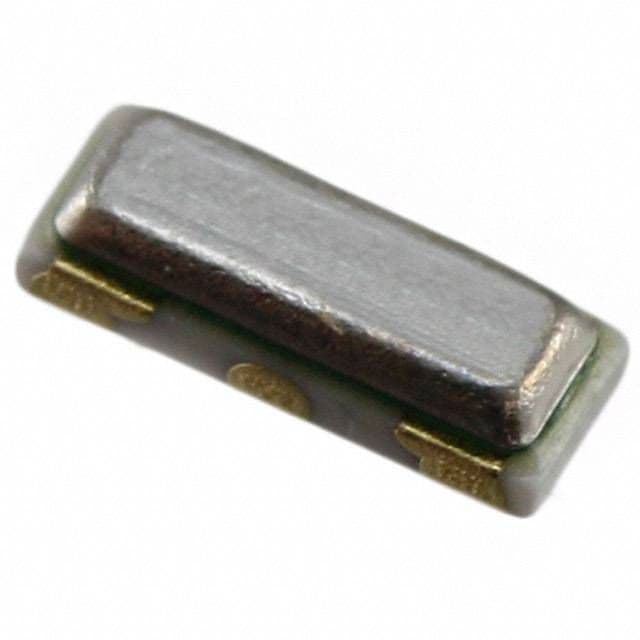

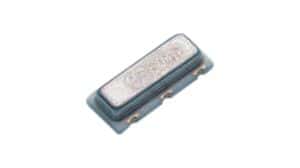

CSTCE8M00G55-R0

8MHz Ceramic Resonator 33pF SMD

Surface mount ceramic resonator operating at 8 MHz with a 33pF load capacitance and 0.5% frequency tolerance. Features a 40 Ohm impedance, 8 MHz self-resonant frequency, and 0.2% frequency stability. Encased in an SMD/SMT package with gold contact plating, this lead-free component operates between -20°C and 80°C.

Frequency8MHz

PackageSMD/SMT

Capacitance33pF

MountingSurface Mount

Quick Jump:

Technical Specifications

Murata CSTCE8M00G55-R0 technical specifications.

General

Capacitance	33pF
Package/Case	SMD/SMT
Contact Plating	Gold
Frequency	8MHz
Frequency Stability	0.2%
Frequency Tolerance	0.5%
Height	0.031inch
Impedance	40R
Lead Free	Lead Free
Length	0.126inch
Load Capacitance	33pF
Max Operating Temperature	80°C
Min Operating Temperature	-20°C
Mount	Surface Mount
Operating Frequency	8 MHz
Package Quantity	1
Packaging	Tape and Reel
Reach SVHC Compliant	No
RoHS Compliant	Yes
Self Resonant Frequency	8MHz
Series	CERALOCK®
Termination	SMD/SMT
Tolerance	0.5%
Width	0.051inch
