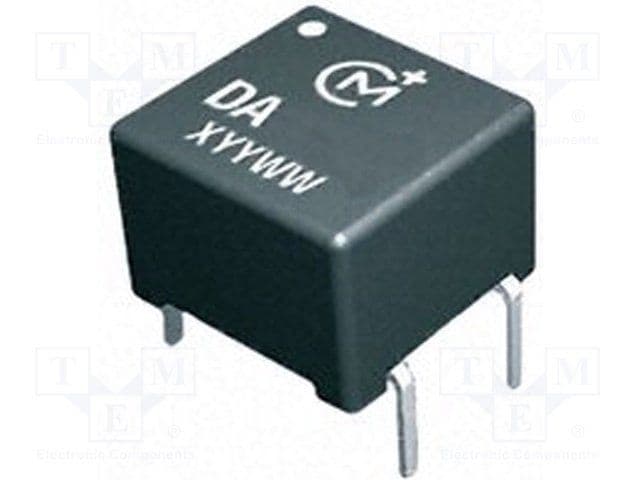

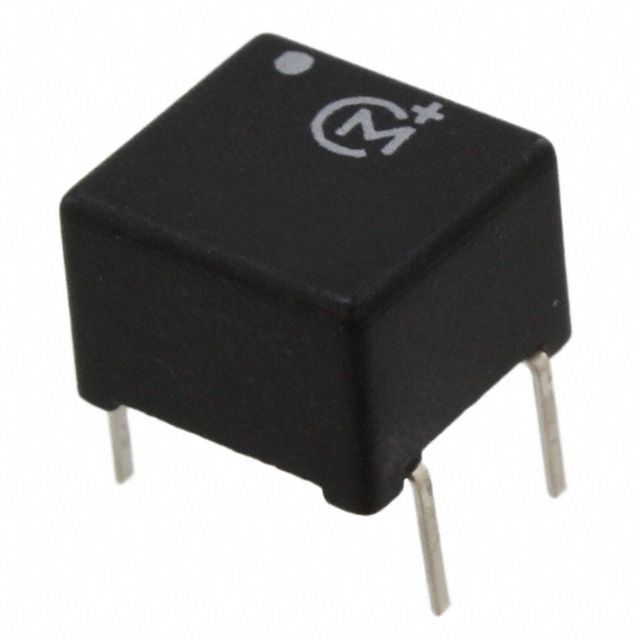

Broadcast audio transformer featuring a 1:1 turns ratio, 2.06mH inductance, and a frequency range of 10kHz to 3MHz. This through-hole mounted component offers 2kV isolation voltage and operates within a temperature range of 0°C to 70°C. Encased in a DIP package with tin-plated contacts, it meets UL94 V-0 flammability standards and is RoHS compliant. Dimensions include a length of 9.52mm, width of 8.89mm, height of 6.35mm, and depth of 10.16mm.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Murata DA101C datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | DIP |
| Contact Plating | Tin |
| Depth | 10.16mm |
| Flammability Rating | UL94 V-0 |
| Height | 6.35mm |
| Inductance | 2.06mH |
| Isolation Voltage | 2kV |
| Lead/Base Style | PC Pin |
| Length | 9.52mm |
| Max Frequency | 3MHz |
| Min Frequency | 10kHz |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Mount | Through Hole |
| Packaging | Rail/Tube |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | DA100 |
| Termination | Through Hole |
| Turns Ratio | 1:1 |
| Width | 8.89mm |
| RoHS | Compliant |
