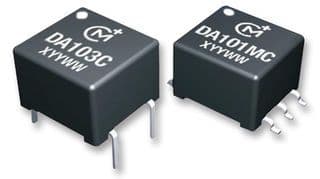

Broadcast audio transformer featuring a 1:1 turns ratio and 2.06mH inductance, designed for surface mount applications with a DIP package. Operates within a 50Hz to 60Hz frequency range, offering 2kV isolation voltage and a return loss of 46.8dB. Constructed with tin, matte contact plating and a UL94 V-0 flammability rating, this unshielded component measures 9.52mm in length, 9mm in width, and 6.35mm in height, with a weight of 0.93g. Suitable for operating temperatures from 0°C to 70°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Murata DA101MC datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | DIP |
| Contact Plating | Tin, Matte |
| Depth | 12.7mm |
| Flammability Rating | UL94 V-0 |
| Height | 6.35mm |
| Height - Seated (Max) | 6.35mm |
| Inductance | 2.06mH |
| Isolation Voltage | 2kV |
| Lead/Base Style | Gull Wing |
| Length | 9.52mm |
| Max Frequency | 60Hz |
| Min Frequency | 50Hz |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Mount | Surface Mount |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Reach SVHC Compliant | No |
| Return Loss | 46.8dB |
| RoHS Compliant | Yes |
| Series | DA100 |
| Shielding | Unshielded |
| Termination | SMD/SMT |
| Turns Ratio | 1:1 |
| Weight | 0.93g |
| Width | 9mm |
| RoHS | Compliant |
