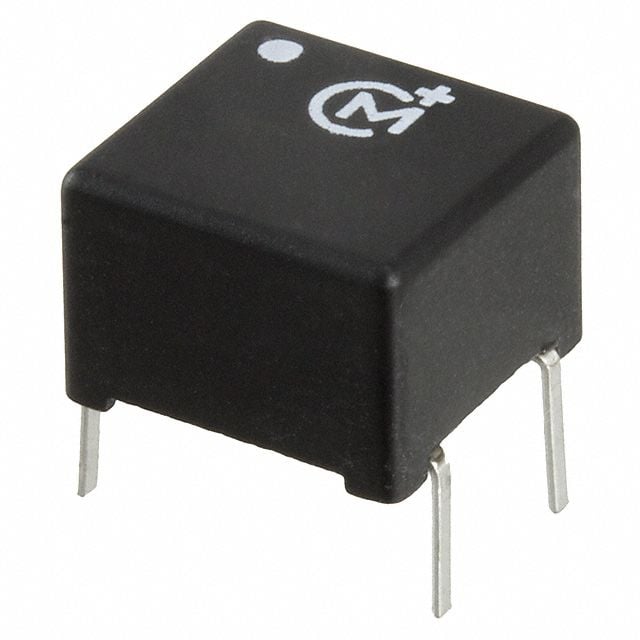

Broadcast audio transformer featuring a 1:1 turns ratio and 3.9mH inductance. Designed for through-hole mounting with PC pin leads and tin contact plating, this component operates within a 100kHz to 3MHz frequency range. It offers 2kV isolation voltage and a flammability rating of UL94 V-0. Encased in a DIP package, it measures 9.52mm in length, 8.89mm in width, 6.35mm in height, and 10.16mm in depth, with a weight of 0.032oz.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Murata DA102C datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | DIP |
| Contact Plating | Tin |
| Depth | 10.16mm |
| Flammability Rating | UL94 V-0 |
| Height | 6.35mm |
| Inductance | 3.9mH |
| Isolation Voltage | 2kV |
| Lead Free | Lead Free |
| Lead/Base Style | PC Pin |
| Length | 9.52mm |
| Max Frequency | 3MHz |
| Min Frequency | 100kHz |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Mount | Through Hole |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | DA100 |
| Termination | Through Hole |
| Turns Ratio | 1:1 |
| Weight | 0.032oz |
| Width | 8.89mm |
| RoHS | Compliant |
