Single layer ceramic capacitor with 1nF capacitance and 20% tolerance. Features a 250VAC voltage rating, X1/Y1 suppression, and a radial, through-hole package. Constructed from ceramic material, it operates from -25°C to 125°C with 10mm lead pitch and 8mm dimensions. This RoHS compliant component is supplied in an ammo pack.
PackageRadial
Voltage250V
Capacitance1nF
Voltage Rating250V
Quick Jump:
Technical Specifications
Murata DE1E3KX102MN5AA01 technical specifications.
General
Capacitance
1nF
Package/Case
Radial
Construction
RADIAL
Depth
8mm
Height - Seated (Max)
0.472inch
Lead Diameter
0.6mm
Lead Free
Lead Free
Lead Pitch
10mm
Lead/Base Style
Formed Leads
Length
8mm
Material
Ceramic
Max Operating Temperature
125°C
Min Operating Temperature
-25°C
Mount
Through Hole
Package Quantity
1
Packaging
Ammo Pack
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
KX
Termination
Radial
Tolerance
20%
Voltage
250V
Voltage Rating
250V
Voltage Rating (AC)
300V
Compliance
RoHS
Compliant
Datasheet
Murata DE1E3KX102MN5AA01 Datasheet
Download the complete datasheet for Murata DE1E3KX102MN5AA01 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

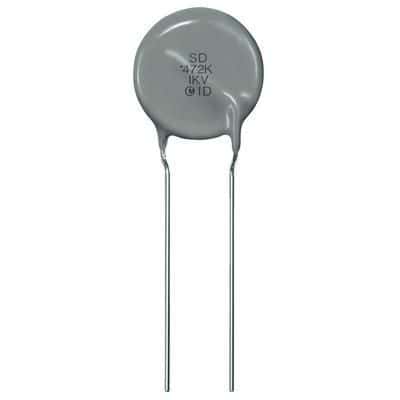

Product Images
