Single layer ceramic capacitor with 2.2nF capacitance and 250VAC voltage rating. Features a 10mm radial lead pitch and 10mm diameter disk package, suitable for through-hole mounting. Operates within a -25°C to 125°C temperature range with 20% tolerance. RoHS compliant and lead-free construction.
PackageRadial
Voltage250V
Capacitance2.2nF
Voltage Rating250V
Quick Jump:
Technical Specifications
Murata DE1E3KX222MA5BA01 technical specifications.
General
| Capacitance | 2.2nF |
| Capacitor Type | Ceramic |
| Package/Case | Radial |
| Construction | RADIAL |
| Depth | 8mm |
| Diameter | 10mm |
| Height - Seated (Max) | 0.551inch |
| Lead Diameter | 0.6mm |
| Lead Free | Lead Free |
| Lead Pitch | 10mm |
| Lead/Base Style | Formed Leads |
| Length | 10mm |
| Manufacturer Series | KX |
| Material | Ceramic |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -25°C |
| Mount | Through Hole |
| Package Quantity | 100 |
| Package Shape | Disk |
| Packaging | Bulk |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | DE1 |
| Termination | Radial |
| Tolerance | 20% |
| Voltage | 250V |
| Voltage Rating | 250V |
| Voltage Rating (AC) | 250V |
Compliance
| RoHS | Compliant |
Datasheet
Murata DE1E3KX222MA5BA01 Datasheet
Download the complete datasheet for Murata DE1E3KX222MA5BA01 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

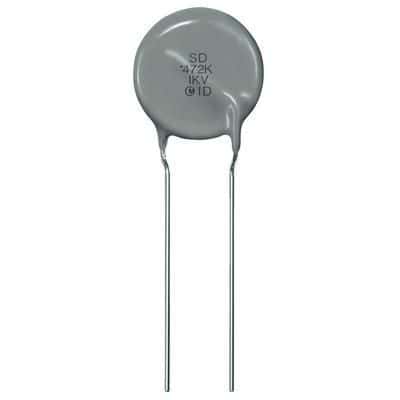

Product Images
