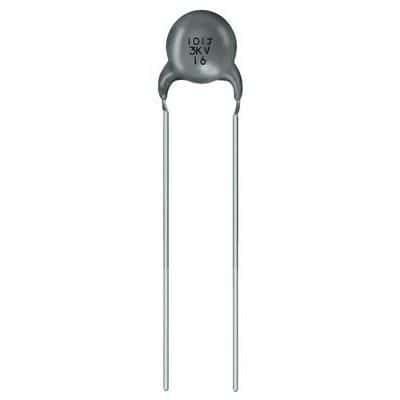

Single Layer Ceramic Capacitor, 47pF capacitance, 3.15kV DC rated voltage, and 5% tolerance. Features radial termination, through-hole mounting, and a 7.5mm lead pitch. Operating temperature range from -25°C to 125°C. Dimensions include 7mm diameter and 6mm depth, with 0.6mm lead diameter. RoHS compliant and lead-free.
PackageRadial
Capacitance47pF
Voltage Rating3.15kV
MountingThrough Hole
Quick Jump:
Technical Specifications
Murata DEA1X3F470JC3B technical specifications.
General
| Application(s) | GENERAL PURPOSE |
| Capacitance | 47pF |
| Package/Case | Radial |
| Construction | RADIAL |
| Depth | 6mm |
| Diameter | 7mm |
| Height - Seated (Max) | 0.394inch |
| Lead Diameter | 0.6mm |
| Lead Free | Lead Free |
| Lead Length | 25mm |
| Lead Pitch | 7.5mm |
| Lead/Base Style | Straight |
| Material | Ceramic |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -25°C |
| Mount | Through Hole |
| Package Quantity | 250 |
| Packaging | Bulk |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | DEA |
| Termination | Radial |
| Tolerance | 5% |
| Voltage Rating | 3.15kV |
| DC Rated Voltage | 3.15kV |
Compliance
| RoHS | Compliant |
