Multilayer ceramic capacitor with 470pF capacitance and 10% tolerance. Features a 2kV DC rated voltage and operates within a -25°C to 85°C temperature range. This through-hole mounted component has radial leads with a 5mm pitch and a 6mm body diameter, constructed from ceramic dielectric material. It is RoHS compliant and designed for general-purpose applications.
PackageRadial
Voltage2kV
Capacitance470pF
Voltage Rating2kV
Quick Jump:
Chat with Datasheet
Sponsored by
Sign in to ask questions about the Murata DEBB33D471KA2B datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Technical Specifications
Murata DEBB33D471KA2B technical specifications.
General
| Application(s) | GENERAL PURPOSE |
| Body Diameter | 6mm |
| Capacitance | 470pF |
| Package/Case | Radial |
| Construction | RADIAL |
| Depth | 5mm |
| Diameter | 6mm |
| Dielectric Material | Ceramic |
| Height - Seated (Max) | 0.354inch |
| Lead Diameter | 0.6mm |
| Lead Free | Lead Free |
| Lead Length | 25mm |
| Lead Pitch | 5mm |
| Lead/Base Style | Formed Leads |
| Length | 6mm |
| Material | Ceramic |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -25°C |
| Mount | Through Hole |
| Package Quantity | 500 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | DEB |
| Termination | Radial |
| Tolerance | 10% |
| Voltage | 2kV |
| Voltage Rating | 2kV |
| DC Rated Voltage | 2kV |
Compliance
| RoHS | Compliant |
Datasheet
Murata DEBB33D471KA2B Datasheet
Download the complete datasheet for Murata DEBB33D471KA2B to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

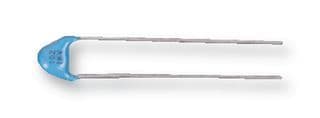

Product Images
