Surface mount data line filter featuring two functions for EMI/RFI suppression. Operates at 5V with a 90mA current rating and 120 Ohm impedance at 100MHz. Constructed in a 03025 EIA standard package with 3.8 Ohm DC resistance. Designed for lead-free and RoHS compliant applications, operating between -40°C and 85°C.
Package3025
Current90mA
Current Rating90mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Murata DLP0NSN121HL2L technical specifications.
General
| Case Code (Imperial) | 0302 |
| Case Code (Metric) | 0806 |
| Package/Case | 3025 |
| Current | 90mA |
| Current Rating | 90mA |
| DC Current | 90mA |
| DC Resistance (DCR) | 3.8R |
| Depth | 0.7mm |
| Height | 0.45mm |
| Impedance | 120R |
| Lead Free | Lead Free |
| Length | 0.85mm |
| Max Current Rating | 90mA |
| Max DC Current | 90mA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Lines | 2 |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | DLP0NS |
| Termination | SMD/SMT |
| Test Frequency | 100MHz |
| Tolerance | 20% |
| DC Rated Voltage | 5V |
| Width | 0.026inch |
Compliance
| RoHS | Compliant |
Datasheet
Murata DLP0NSN121HL2L Datasheet
Download the complete datasheet for Murata DLP0NSN121HL2L to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

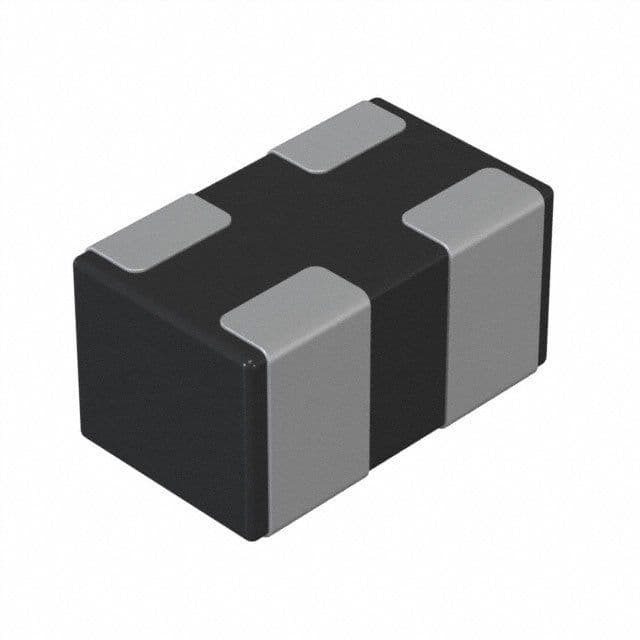

Product Images
