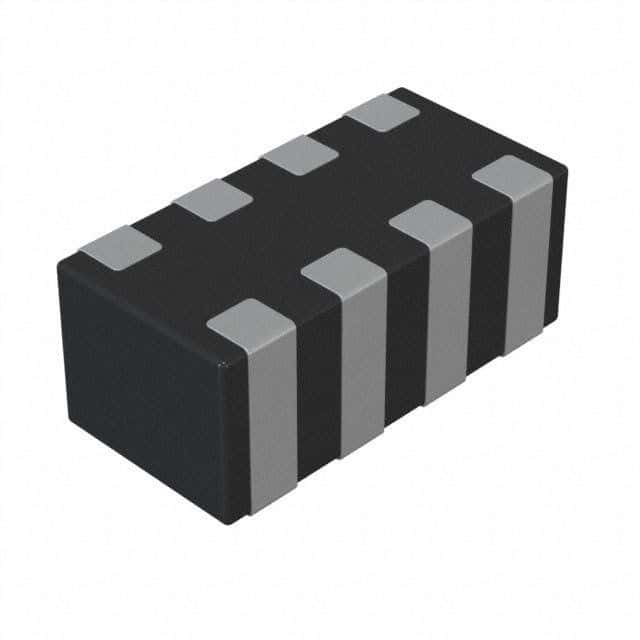

Surface mount data line filter featuring four functions for EMI/RFI suppression. This component operates with a 5V DC rated voltage and a maximum current rating of 100mA. It offers 160 Ohms impedance at 100MHz and a DC resistance of 2.5 Ohms. Housed in an 0804 EIA standard package, it measures 0.079 inches in length, 0.039 inches in width, and 0.036 inches in height, with a depth of 1.1mm. Operating temperature range is -40°C to 85°C, and it is RoHS compliant.
Package0804
Current100mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Murata DLP2ADN161HL4L technical specifications.
General
| Case Code (Imperial) | 0804 |
| Case Code (Metric) | 2010 |
| Package/Case | 0804 |
| Current | 100mA |
| DC Current | 100mA |
| DC Resistance (DCR) | 2.5R |
| Depth | 1.1mm |
| Height | 0.036inch |
| Impedance | 160R |
| Length | 0.079inch |
| Max Current Rating | 100mA |
| Max DC Current | 100mA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Lines | 4 |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Series | EMIFIL®, DLP2AD |
| Termination | SMD/SMT |
| Test Frequency | 100MHz |
| Tolerance | 20% |
| DC Rated Voltage | 5V |
| Width | 0.039inch |
Compliance
| RoHS | Compliant |
Datasheet
Murata DLP2ADN161HL4L Datasheet
Download the complete datasheet for Murata DLP2ADN161HL4L to view detailed technical specifications.
