Dual-line common mode choke for power and signal filtering. Features 370 Ohm impedance at 100MHz, 280mA DC current rating, and 450mOhm DC resistance. Surface mountable in an 0805 package, operating from -40°C to 85°C. 50V voltage rating and lead-free construction.
Package0805
Current280mA
Voltage Rating50V
Current Rating280mA
Quick Jump:
Technical Specifications
Murata DLW21SN371SQ2L technical specifications.
General
Package/Case
0805
Current
280mA
Current Rating
280mA
DC Current
280mA
DC Resistance (DCR)
450mR
DC Resistance-Max
450mR
Depth
1.4mm
Height
0.055inch
Impedance
370R
Lead Free
Lead Free
Length
2mm
Max DC Current
280mA
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Mount
Surface Mount
Number of Lines
2
Package Quantity
1
Packaging
Tape and Reel
RoHS Compliant
Yes
Series
EMIFIL®, DLW21S
Series Resistance
450mR
Shielding
Unshielded
Termination
SMD/SMT
Test Frequency
100MHz
Tolerance
25%
Voltage Rating
50V
DC Rated Voltage
50V
Weight
0.000388oz
Width
0.047inch
Compliance
RoHS
Compliant
Datasheet
Murata DLW21SN371SQ2L Datasheet
Download the complete datasheet for Murata DLW21SN371SQ2L to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

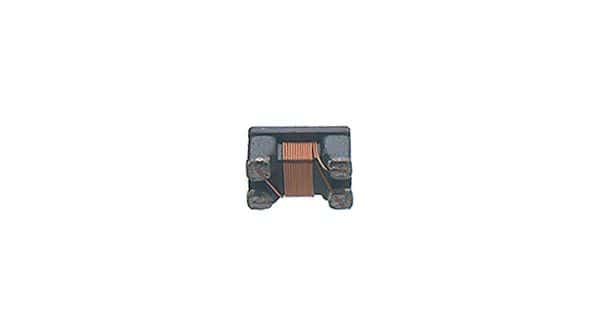

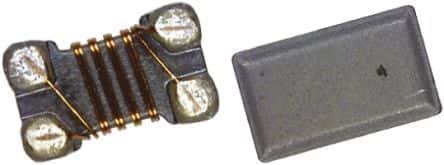

Product Images
