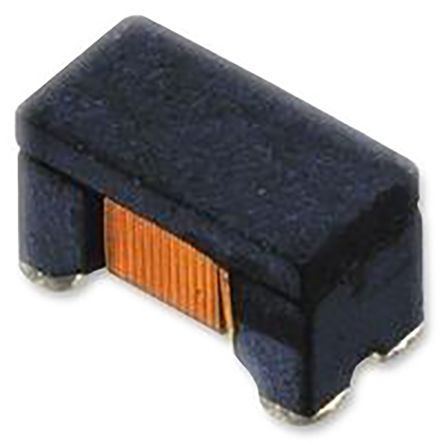

Dual-line common mode choke with 1kΩ impedance at 100MHz. Features a 1Ω DC resistance and a maximum DC current rating of 230mA. This wirewound inductor is housed in a 1206 surface-mount case, measuring 3.2mm x 1.6mm x 1.9mm. Operates within a temperature range of -40°C to 85°C and has a voltage rating of 50V. RoHS compliant and supplied on tape and reel.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Murata DLW31SN102SQ2L datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Murata DLW31SN102SQ2L technical specifications.
| Case Code (Imperial) | 1206 |
| Package/Case | 1206 |
| Current | 230mA |
| Current Rating | 230mA |
| DC Current | 230mA |
| DC Resistance (DCR) | 1R |
| DC Resistance-Max | 1R |
| Depth | 1.6mm |
| Height | 1.9mm |
| Impedance | 1kR |
| Inductor Type | Wirewound |
| Lead Free | Lead Free |
| Length | 3.2mm |
| Max DC Current | 230mA |
| Max Operating Temperature | 85°C |
| Military Standard | Not |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Lines | 2 |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Self Resonant Frequency | 100MHz |
| Series | DLW31S |
| Shielding | Unshielded |
| Termination | SMD/SMT |
| Test Frequency | 100MHz |
| Tolerance | 25% |
| Voltage Rating | 50V |
| DC Rated Voltage | 50V |
| Weight | 0.001376oz |
| Width | 0.063inch |
| RoHS | Compliant |
