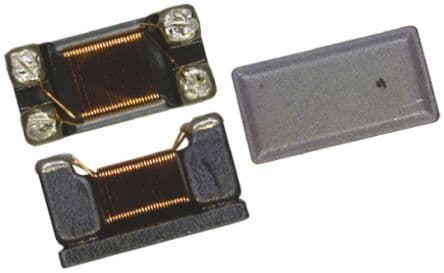

Surface mount data line filter with 2 functions, rated for 50V and 370mA DC current. Features 90 Ohm impedance at 100MHz, 300mOhm maximum DC resistance, and operates within a -40°C to 85°C temperature range. Packaged in an EIA STD 1206 case size, this RoHS compliant component is designed for data line EMI/RFI suppression.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Murata DLW31SN900SQ2L datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Case Code (Imperial) | 1206 |
| Package/Case | 1206 |
| Current | 370mA |
| Current Rating | 370mA |
| DC Current | 370mA |
| DC Resistance (DCR) | 300mR |
| DC Resistance-Max | 300mR |
| Depth | 1.6mm |
| Frequency | 100MHz |
| Height | 1.9mm |
| Impedance | 90R |
| Lead Free | Lead Free |
| Length | 3.2mm |
| Max Current Rating | 370mA |
| Max DC Current | 370mA |
| Max Operating Temperature | 85°C |
| Military Standard | Not |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Lines | 2 |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | DLW31S |
| Shielding | Unshielded |
| Termination | SMD/SMT |
| Test Frequency | 100MHz |
| Tolerance | 25% |
| Voltage Rating | 50V |
| DC Rated Voltage | 50V |
| Weight | 0.001376oz |
| Width | 0.063inch |
| RoHS | Compliant |
