Radial leaded data line filter, 1 function, 100V DC rated voltage, 6A maximum DC current. Features 2.2nF capacitance with 80% tolerance. Operates within a temperature range of -25°C to 85°C. Through-hole mount design with a radial termination. RoHS compliant and lead-free.
PackageRadial
Current6A
Capacitance2.2nF
Voltage Rating100V
Quick Jump:
Technical Specifications
Murata DSS6NE52A222Q91A technical specifications.
General
| Capacitance | 2.2nF |
| Package/Case | Radial |
| Current | 6A |
| Current Rating | 6A |
| Depth | 2.54mm |
| ESD Protection | No |
| Height | 0.394inch |
| Lead Free | Lead Free |
| Length | 8mm |
| Max Current Rating | 6A |
| Max DC Current | 6A |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -25°C |
| Max Voltage Rating (DC) | 100V |
| Mount | Through Hole |
| Number of Channels | 1 |
| Package Quantity | 1 |
| Packaging | Ammo Pack |
| Radiation Hardening | No |
| Ripple Current | 6A |
| RoHS Compliant | Yes |
| Series | EMIFIL®, DSS6 |
| Termination | Radial |
| Tolerance | 80% |
| Voltage Rating | 100V |
| DC Rated Voltage | 100V |
| Width | 0.1inch |
Compliance
| RoHS | Compliant |
Datasheet
Murata DSS6NE52A222Q91A Datasheet
Download the complete datasheet for Murata DSS6NE52A222Q91A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

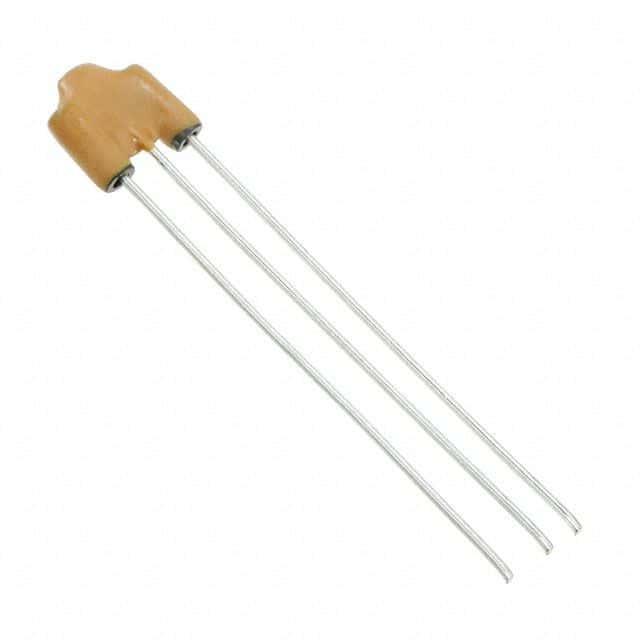

Product Images
