Multilayer ceramic capacitor with 2.2µF capacitance and 100V DC rating. Features X7R dielectric, 10% tolerance, and soft termination for enhanced reliability. Surface mountable in a 1210 (3225 metric) case code, operating from -55°C to 125°C. AEC-Q200 qualified and RoHS compliant, supplied on tape and reel.
Package1210
Capacitance2.2uF
Voltage Rating100V
MountingSurface Mount
Quick Jump:
Technical Specifications
Murata GCJ32DR72A225KA01L technical specifications.
General
Capacitance
2.2uF
Case Code (Imperial)
1210
Case Code (Metric)
3225
Package/Case
1210
Features
Soft Termination
Lead Free
Lead Free
Length
0.126inch
Material
Ceramic
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount
Package Quantity
1
Packaging
Tape and Reel
Ratings
AEC-Q200
RoHS Compliant
Yes
Series
GCJ
Termination
SMD/SMT
Thickness
0.079inch
Tolerance
10%
Voltage Rating
100V
DC Rated Voltage
100V
Width
0.098inch
Compliance
RoHS
Compliant
Datasheet
Murata GCJ32DR72A225KA01L Datasheet
Download the complete datasheet for Murata GCJ32DR72A225KA01L to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

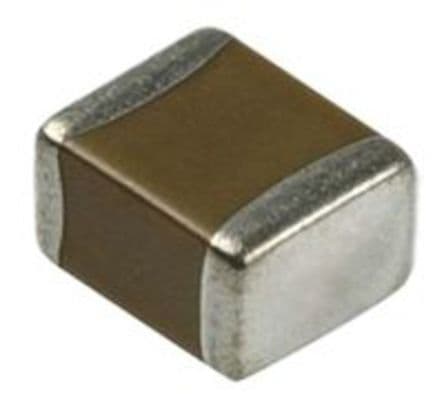

Product Images
