Multilayer Ceramic Capacitor (MLCC) with 2.2nF capacitance and 100V DC rating. Features X7R dielectric, 10% tolerance, and a 0402 (1005 metric) SMD package. Operating temperature range from -55°C to 125°C, with a dissipation factor of 0.01%. AEC-Q200 qualified and RoHS compliant, supplied on tape and reel.
Package0402
Capacitance2.2nF
Voltage Rating100V
MountingSurface Mount
Quick Jump:
Technical Specifications
Murata GCM155R72A222KA37D technical specifications.
General
Capacitance
2.2nF
Case Code (Imperial)
0402
Case Code (Metric)
1005
Package/Case
0402
Construction
Flat
Depth
0.5mm
Dielectric
X7R
Dissipation Factor
0.01%
Height
0.5mm
Lead Free
Lead Free
Length
1mm
Material
Ceramic
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount
Package Quantity
1
Packaging
Tape and Reel
Radiation Hardening
No
Ratings
AEC-Q200
RoHS Compliant
Yes
Series
GCM
Termination
SMD/SMT
Thickness
0.022inch
Tolerance
10%
Voltage Rating
100V
DC Rated Voltage
100V
Width
0.02inch
Compliance
RoHS
Compliant
Datasheet
Murata GCM155R72A222KA37D Datasheet
Download the complete datasheet for Murata GCM155R72A222KA37D to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

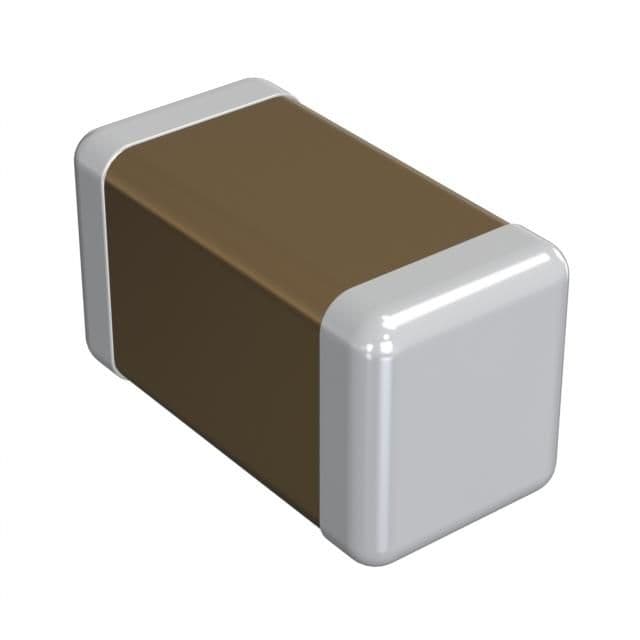

Product Images
