The GCM21BL81H224KA37L is a 220nF ceramic capacitor with a voltage rating of 50V and a dielectric of X8L. It is available in a 0805 package and is surface mountable. The capacitor has a maximum operating temperature of 150°C and a minimum operating temperature of -55°C. It is compliant with AEC-Q200 and RoHS regulations.
Package0805
Capacitance220nF
Voltage Rating50V
MountingSurface Mount
Quick Jump:
Chat with Datasheet
Sponsored by
Sign in to ask questions about the Murata GCM21BL81H224KA37L datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Technical Specifications
Murata GCM21BL81H224KA37L technical specifications.
General
| Capacitance | 220nF |
| Case Code (Imperial) | 0805 |
| Case Code (Metric) | 2012 |
| Package/Case | 0805 |
| Depth | 1.25mm |
| Dielectric | X8L |
| Height | 1.25mm |
| Length | 2mm |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Ratings | AEC-Q200 |
| RoHS Compliant | Yes |
| Series | GCM |
| Termination | SMD/SMT |
| Thickness | 0.055inch |
| Tolerance | 10% |
| Voltage Rating | 50V |
| DC Rated Voltage | 50V |
| Width | 1.25mm |
Compliance
| RoHS | Compliant |
Datasheet
Murata GCM21BL81H224KA37L Datasheet
Download the complete datasheet for Murata GCM21BL81H224KA37L to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

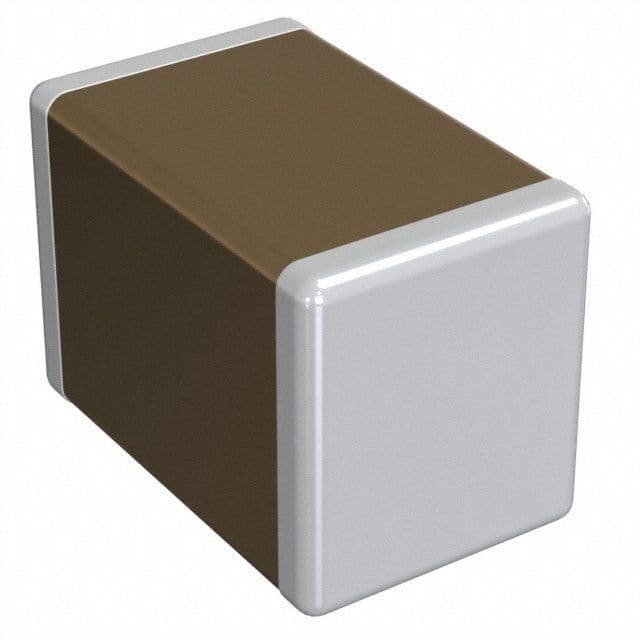

Product Images
