1.5µF, 16V X7R multilayer ceramic capacitor with 10% tolerance. Features a 0805 (2012 metric) surface mount package, operating from -55°C to 125°C. AEC-Q200 qualified and RoHS compliant, supplied in tape and reel packaging.
Package0805
Capacitance1.5uF
Voltage Rating16V
MountingSurface Mount
Quick Jump:
Technical Specifications
Murata GCM21BR71C155KA37L technical specifications.
General
| Capacitance | 1.5uF |
| Case Code (Imperial) | 0805 |
| Case Code (Metric) | 2012 |
| Package/Case | 0805 |
| Construction | Flat |
| Depth | 1.25mm |
| Dielectric | X7R |
| Height | 1.25mm |
| Length | 2mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Ratings | AEC-Q200 |
| RoHS Compliant | Yes |
| Series | GCM |
| Termination | SMD/SMT |
| Thickness | 0.055inch |
| Tolerance | 10% |
| Voltage Rating | 16V |
| DC Rated Voltage | 16V |
| Width | 0.049inch |
Compliance
| RoHS | Compliant |
Datasheet
Murata GCM21BR71C155KA37L Datasheet
Download the complete datasheet for Murata GCM21BR71C155KA37L to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

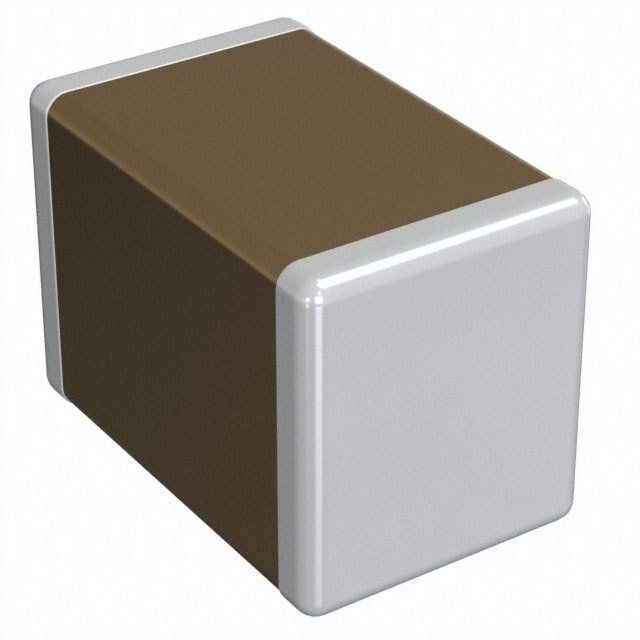

Product Images
