Multilayer Ceramic Capacitor (MLCC) with 0.68µF capacitance and 25V DC rating. Features X7R dielectric, 10% tolerance, and a 0805 (2012 metric) SMD package. Operating temperature range from -55°C to 125°C, constructed with lead-free ceramic material. AEC-Q200 qualified for automotive applications, supplied in tape and reel packaging.
Package0805
Capacitance680nF
Voltage Rating25V
MountingSurface Mount
Quick Jump:
Technical Specifications
Murata GCM21BR71E684KA55L technical specifications.
General
| Capacitance | 680nF |
| Case Code (Imperial) | 0805 |
| Case Code (Metric) | 2012 |
| Package/Case | 0805 |
| Construction | Flat |
| Depth | 1.25mm |
| Dielectric | X7R |
| Height | 1.25mm |
| Lead Free | Lead Free |
| Length | 2mm |
| Material | Ceramic |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Ratings | AEC-Q200 |
| RoHS Compliant | Yes |
| Series | GCM |
| Termination | SMD/SMT |
| Thickness | 0.055inch |
| Tolerance | 10% |
| Voltage Rating | 25V |
| DC Rated Voltage | 25V |
| Width | 1.25mm |
Compliance
| RoHS | Compliant |
Datasheet
Murata GCM21BR71E684KA55L Datasheet
Download the complete datasheet for Murata GCM21BR71E684KA55L to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

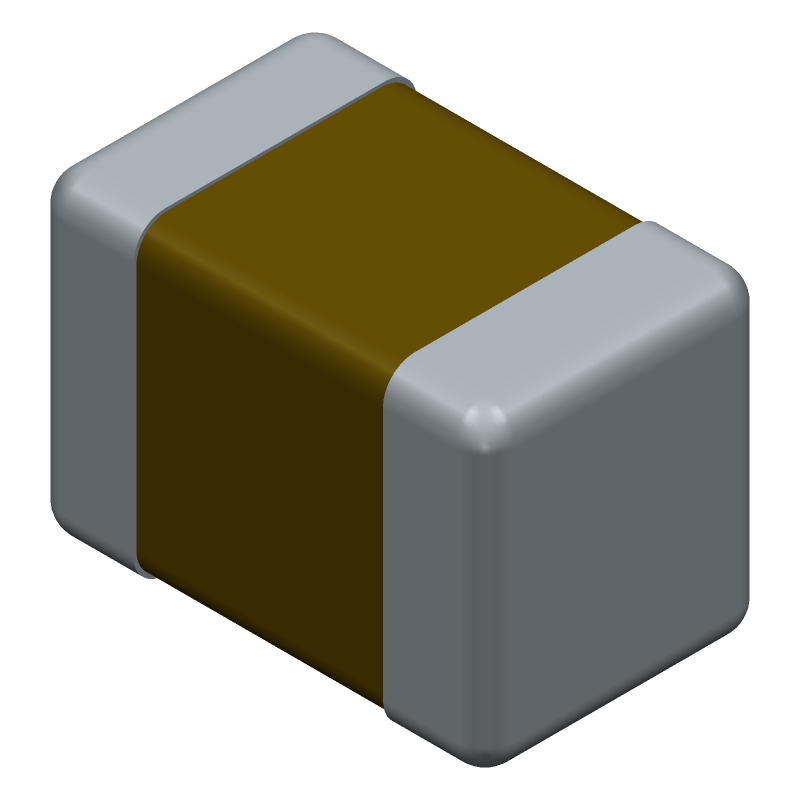

Product Images
