Multilayer Ceramic Capacitor (MLCC) with 3.9pF capacitance and 50V DC rated voltage. Features C0G dielectric for stable performance across a -55°C to 125°C operating temperature range. Surface mountable in a 0402 (1005 metric) case code, with dimensions of 1mm length, 0.5mm width, and 0.5mm height. Packaged on tape and reel, this RoHS compliant component offers reliable termination for automated assembly.
Package0402
Capacitance3.9pF
Voltage Rating50V
MountingSurface Mount
Quick Jump:
Technical Specifications
Murata GJM1555C1H3R9BB01D technical specifications.
General
| Capacitance | 3.9pF |
| Case Code (Imperial) | 0402 |
| Case Code (Metric) | 1005 |
| Package/Case | 0402 |
| Construction | Flat |
| Depth | 0.5mm |
| Dielectric | C0G |
| Height | 0.5mm |
| Lead Pitch | 0.3mm |
| Length | 0.039inch |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | GJM |
| Termination | SMD/SMT |
| Thickness | 0.022inch |
| Voltage Rating | 50V |
| DC Rated Voltage | 50V |
| Width | 0.02inch |
Compliance
| RoHS | Compliant |
Datasheet
Murata GJM1555C1H3R9BB01D Datasheet
Download the complete datasheet for Murata GJM1555C1H3R9BB01D to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

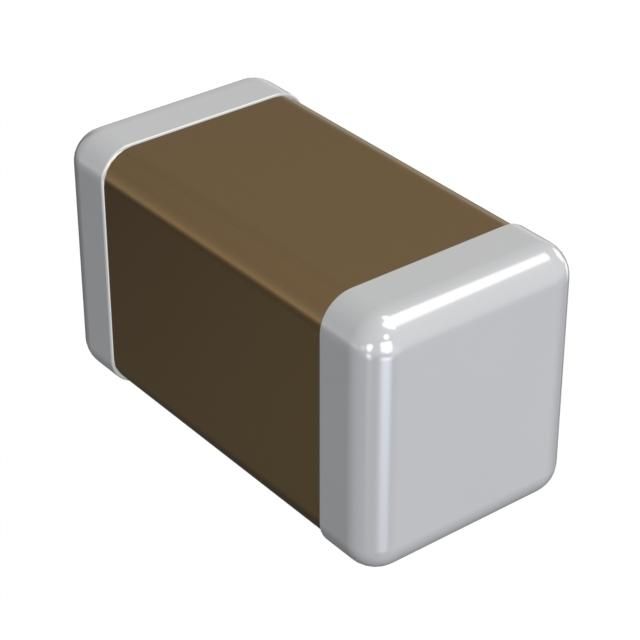

Product Images
