Multilayer Ceramic Capacitor (MLCC) with 33pF capacitance and 50V DC rated voltage. Features C0G dielectric, 5% tolerance, and a 0603 (1608 metric) surface mount package. Operating temperature range from -55°C to 125°C. RoHS compliant and lead-free.
Package0603
Voltage50V
Capacitance33pF
Voltage Rating50V
Quick Jump:
Technical Specifications
Murata GQM1885C1H330JB01D technical specifications.
General
Capacitance
33pF
Case Code (Imperial)
0603
Case Code (Metric)
1608
Package/Case
0603
Construction
Flat
Depth
0.8mm
Dielectric
C0G
Height
0.8mm
Lead Free
Lead Free
Lead Pitch
0.5mm
Length
1.6mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount
Package Quantity
1
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
GQM
Termination
SMD/SMT
Thickness
0.035inch
Tolerance
5%
Voltage
50V
Voltage Rating
50V
DC Rated Voltage
50V
Weight
7.1E-05oz
Width
0.8mm
Compliance
RoHS
Compliant
Datasheet
Murata GQM1885C1H330JB01D Datasheet
Download the complete datasheet for Murata GQM1885C1H330JB01D to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

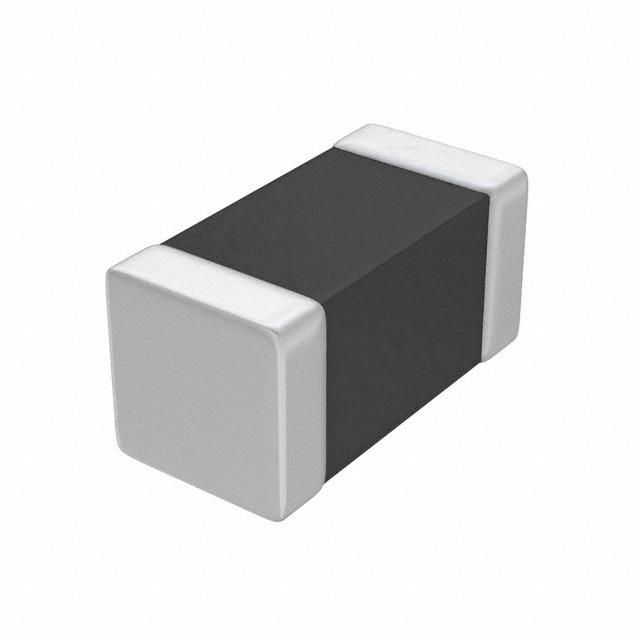

Product Images
